With increasing global attention on environmental protection, reducing CO₂ emissions from shipping is urgent. This study explores post-combustion CO₂ capture using adsorbents for marine exhaust. A SrO-based CO₂ adsorbent supported by CeO₂ was prepared via sol-gel method, and its cyclic adsorption capacity was tested through fixed-bed experiments. The impact of dopants, carbonation temperature, and CO₂ concentration on adsorption performance was studied, and the microstructure was analyzed using X-ray Diffraction (XRD), Scanning Electron Microscopy (SEM), Energy Dispersive Spectroscopy (EDS), and Brunauer-Emmett-Teller (BET). Results show that Ce-2SrO demonstrates excellent performance and stability at 880 ℃ and 950 ℃ under adsorption-desorption conditions, retaining about 93% CO₂ adsorption efficiency after 20 cycles. SEM and EDS reveal that CeO₂ is evenly distributed within SrO pores, enhancing pore structure stability, adsorption capacity, and resistance to sintering. SrO-based adsorbents show excellent thermal sintering resistance due to CeO₂. Additionally, CeO₂ promotes ion migration during carbonation, helping maintain adsorption activity. This study presents a novel approach for synthesizing efficient, stable CO₂ adsorbents and offers a new strategy for marine carbon capture.

Keywords: CO₂ capture, Adsorbent, Ce-2SrO, High efficiency, Cyclic stability.

Given the exponential increase in global population and energy usage, the issue of global climate change has escalated significantly, with CO₂ emissions becoming a major global concern. Currently, CO₂ generated from the using of fossil fuels and cement production constitutes 87% of all CO₂ emissions from human activities, and the majority of marine transportation still relies on fossil fuels for power. The technology of CCUS (CO₂ capture, utilization, and storage) is acknowledged as one of the most economically efficient strategies to swiftly reduce CO₂ emissions due to its technical attributes [1-3]. CO₂ capture technology forms a crucial component of CCUS technology. In addition to the benefits of conventional CCUS, it also offers the advantages of straightforward operation, cost-effectiveness, and high efficiency [4-6]. CO₂ capture can be categorized into three types: pre-combustion, oxygen-enriched, and post-combustion capture. Currently, post-combustion capture is extensively employed in power plants and stands as the most advanced method of carbon capture to date [7]. Figure 1 shows the process flow of post-combustion CO₂ capture for marine. Marine vessels can easily adapt their existing exhaust gas treatment systems without altering the engine or the entire system, and the capital investment is minimal. Therefore, it is the most probable method to be implemented for capturing CO₂ from marine exhaust.
Undoubtedly, the efficiency and stability of adsorbents are fundamental to CO₂ capture. Adsorbents can be classified into low-temperature, medium-temperature, and high-temperature categories based on their carbona­tion temperature. Presently, MgO and CaO are the most researched adsorbents, falling under the medium and high-temperature categories respectively. CaO-based adsorbents, with their high theoretical adsorption capacity, abundant availability, and cost-effectiveness, are regarded as superior high-temperature CO₂ adsorbents [8]. However, under high-temperature reaction conditions, the reactivity of calcined regenerated CaO decays rapidly due to sintering [9]. Therefore, many studies have been devoted to improving the structure of adsorbents to improve their CO₂ capture ability, including chemical pretreatment, preparation methods, and precursor composition [10]. On the contrary, doping heat-resistant metal oxides can effectively reduce the sintering phenomenon of adsorbents, such as Al₂O₃, Y₂O₃, SiO₂, TiO₂, ZrO₂, MgO, and CeO₂, which are widely studied [11]. Wu proposed a synchronous titration-calcination method to synthesize a CaO-based adsorbent with CeO₂ as support. It was determined that optimal CO₂ adsorption performance is achieved when the doping ratio of Ca to Ce is 24:1, and the adsorption capacity remained high after 15 cycles [12]. At present, the support of SrO is also being studied. Gigantino synthesized a SrO-based adsorbent with MgO as a dopant and tested its cycle stability [13]. It is concluded that MgO doping can alleviate the deactivation caused by the sintering of the adsorbent. Andr'e also used MgO as a sintering inhibitor and stabilizer of SrO, and experimented in multiple cycles and different gas atmospheres, and concluded that MgO doping prevented a significant loss of adsorbent activity [14]. Despite acting as physical barriers between neighboring adsorbent particles, reducing the rate of sintering, and preserving the pore structure, the support can still function effectively, they still have the problem of reactivity decay in multiple cycles, so it is still necessary to develop highly stable CO₂ adsorbents.
Consequently, this study proposes a novel high-efficiency SrO-based adsorbent for marine CO₂ capture. CeO₂, ZrO₂, and Al₂O₃, which are widely studied supports, can facilitate the uniform distribution of SrO and mitigate the aggregation of adsorbent particles, thus delaying the sintering of adsorbents. Simultaneously, they possess a high Taman temperature to prevent the pore structure of the adsorbent from aggregating. As such, this study investigates the CO₂ capture performance of SrO supported by different supports. Furthermore, the adsorption properties of Ce-2SrO at varying carbonation temperatures and CO₂ concentrations are discussed, and the adsorption stability of Ce-2SrO is validated through cyclic adsorption experiments. These works collectively provide a reference for the application of marine CO₂ capture.

Preparation of Adsorbent

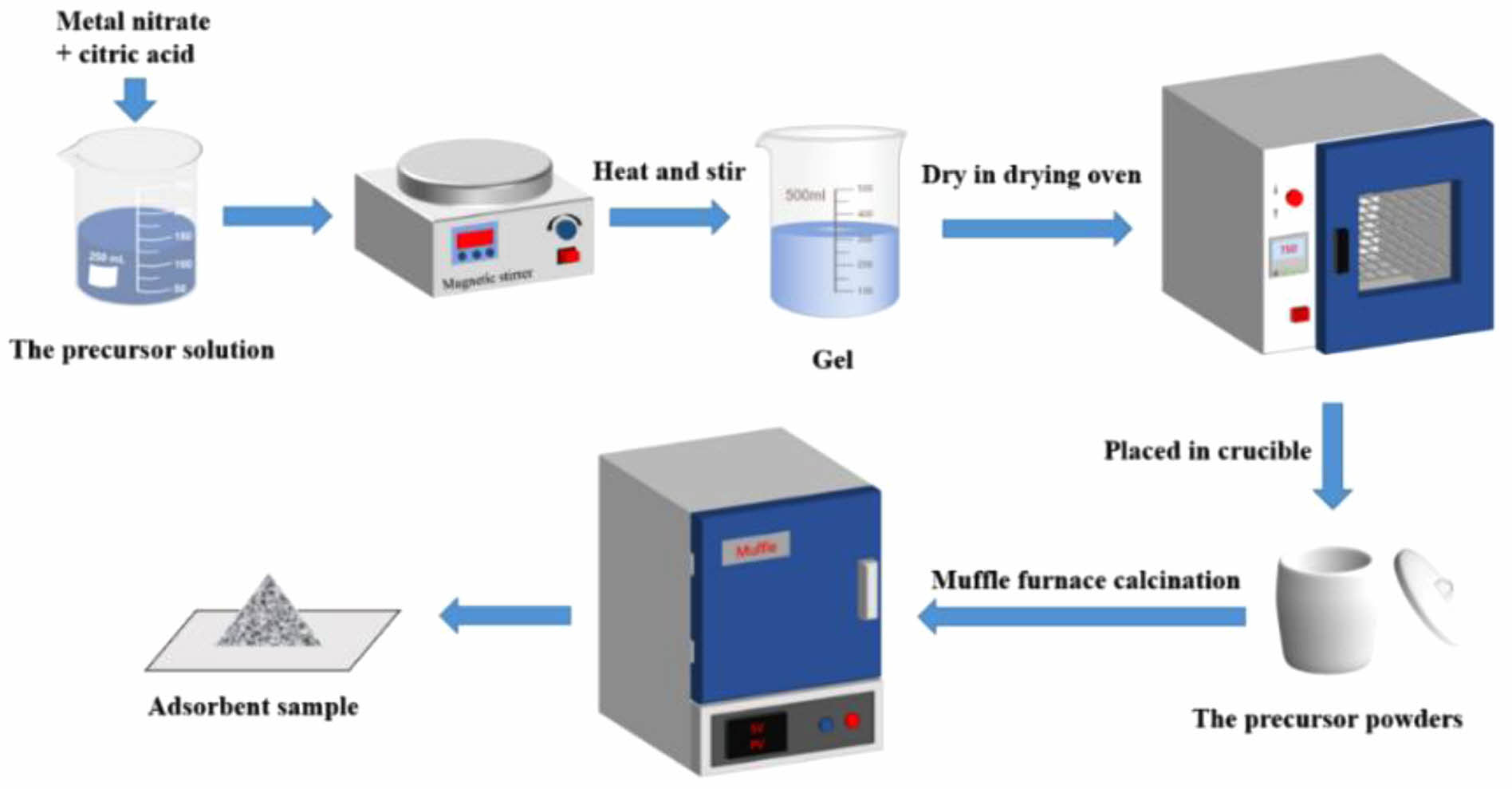

The sol-gel method is used to prepare the Ce-2SrO adsorbent, and the preparation process is shown in Figure 2. Sr(NO₃)₂·4H₂O and Ce(NO₃)₃·6H₂O were dissolved in 100 ml of deionized water in a molar ratio of 2:1. Then citric acid and ethylene glycol were added according to the molar ratio of metal ion to complexing agent, and the molar ratio of ethylene glycol: citric acid: metal ion was 3.75: 2.5: 1. After proper stirring, place the beaker in a water bath at 80 ℃ and stir for about 2 hours until a gelatinous mixture is obtained. After that, the gel was dried in a drying oven at 150 ℃ for 12 hours to obtain the xerogel. In the next step, the xerogel is completely ground and calcined in a muffle furnace at a temperature of 900 ℃ for 3 hours. Finally, the sample is taken out, cooled, and ground to obtain the adsorbent sample. The preparation process of the other two samples is similar. They are Zr-2SrO and Al-2SrO respectively.
CO₂ cyclic adsorption experiment

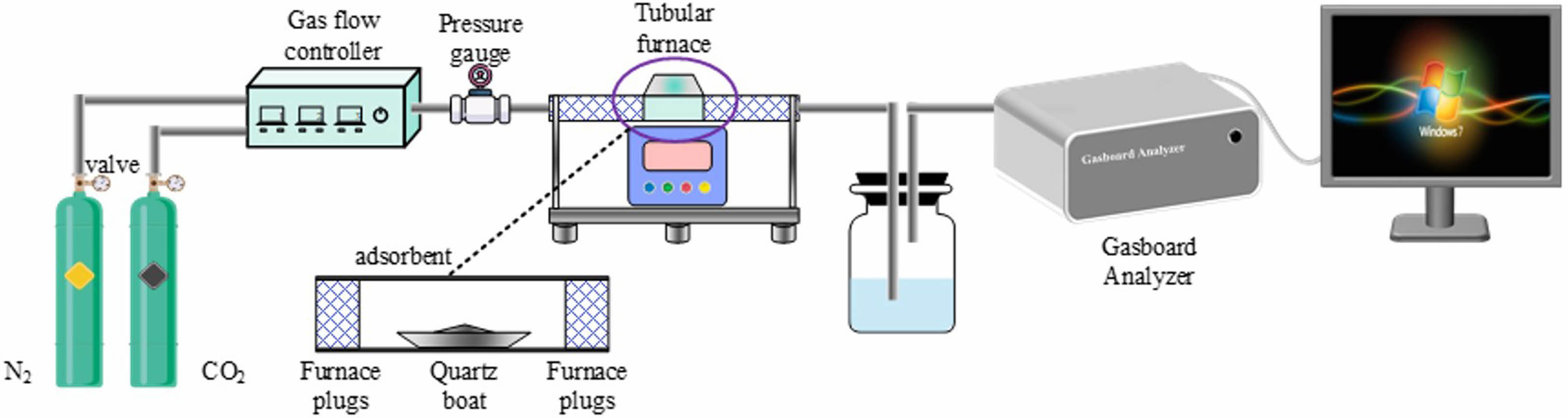

The experimental device for CO₂ cyclic adsorption is shown in Fig. 3. Adsorption experiment: Prior to the cyclic adsorption experiment, measure approximately 500 mg of the adsorbent sample and position it in the center of a tubular furnace, the sample was thermally treated (calcined) at 950 ℃ in 200 ml/min N₂ atmosphere for 15 min, then taken out and cooled to room temperature, weighed, and recorded. Subsequently, the sample was placed in the middle of a tubular furnace, CO₂ with a flow rate of 300 ml/min was introduced, and the sample was carbonated at 880 ℃ for 15 minutes. After carbonation is complete, the sample is cooled down to room temperature and weighed. And the material adsorbed by CO₂ was calcined in a nitrogen atmosphere at 950 ℃ for 15 minutes for regeneration. Complete the cycle experiment by repeating the aforementioned adsorption and calcination procedures.
The above carbonation/calcination process was repeated 20 times, and the adsorption efficiency of the adsorbent was calculated according to the formula:



In the formula, m_s is the actual mass (g) of the adsorbent during the reaction. m_d is the mass (g) of the adsorbent after the first calcination. A is the mass ratio of SrO in the adsorbent, M_SrO and M_CO2 are the relative molecular mass of SrO and CO₂, respectively.
Characterization
An Ultima IV X-ray diffractometer, a product of Japan’s Rigaku Company, was employed for the determination of the adsorbent’s phase and crystal phase analysis. The sample was situated on a glass slide with a copper target inside the X-ray diffractometer. The scanning parameters were set to cover a range from 10° to 90° at a rate of 5° per minute. The collected data was then analyzed using Highscore software.
The morphology and elemental distribution of the samples were inspected using the SUPRA 55 SAPPHIRE field emission scanning electron microscope, manufactured by ZEISS Company, Germany. The imaging for Scanning Electron Microscopy (SEM) was obtained through either backscattered electron beams or secondary electrons. Prior to testing, the samples underwent a gold coating process in a vacuum for 150 seconds. The microscope was operated with an amplification factor that varied from 10 to 100 K, and an acceleration voltage that ranged between 5 and 20 kV.
The adsorption and desorption of the adsorbent were carried out using the ASAP 2460 Automatic Specific Surface Area and Porosity Analyzer, a Micromeritics product from the USA. Nitrogen was used as the analysis gas, and the bath temperature was maintained at 77.3 K. During the analysis, the pressure tolerance for both adsorption and desorption was set at 0.100, with an equilibration time of 60 seconds per stage and an equilibration timeout of 240 seconds. The adsorbents’ specific surface area and pore characteristics were assessed using a multimolecular layer adsorption theory and a model for calculating pore size distribution. The total pore volume was measured at a relative pressure of P/Ps = 0.98409.

XRD Characterization

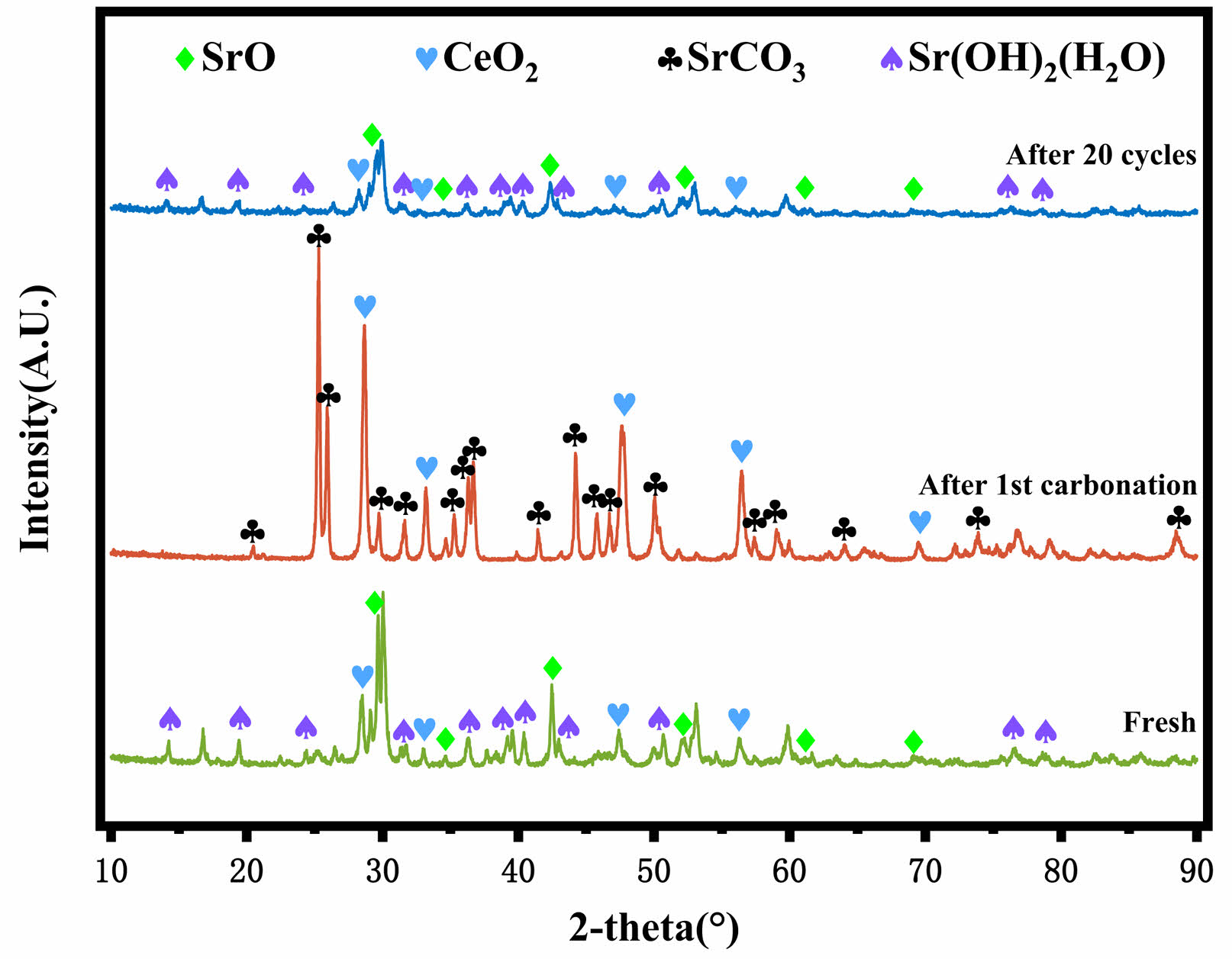

XRD was used to characterize fresh Ce-2SrO, as well as Al-2SrO, Zr-2SrO, and Ce-2SrO after primary carbonation and 20 cycles, and their crystal structures were analyzed. The XRD of Ce-2SrO at different stages is shown in Fig. 4, the characteristic peaks of SrO and CeO₂ can be clearly observed in fresh samples, corresponding to standard cards (PDF#97-067-0284) and (PDF#99-000-0623), respectively, indicating the formation of SrO and CeO₂ crystal phases. However, no diffraction peaks were observed for the composite products formed between Sr and Ce, indicating that SrO and CeO₂ were adsorbents formed through physical doping [15]. In addition, the characteristic peak containing Sr(OH)₂(H₂O) was also observed, which is due to the water absorption of SrO [16]. An extremely obvious characteristic peak of SrCO₃ can be observed in the Ce-2SrO sample after primary carbonation, in which the characteristic peak of SrO basically does not exist, indicating that SrO in the adsorbent is completely carbonated, which indicates that the adsorbent can be effectively utilized. The characteristic peak of SrCO₃ is hardly visible in the Ce-2SrO sample after 20 cycles, while the characteristic peaks of SrO and CeO₂ are still clearly visible, which suggests that the introduction of CeO₂ inhibits the growth and agglomeration of SrO crystals, which is advantageous for CO₂ sequestration across numerous cycles.

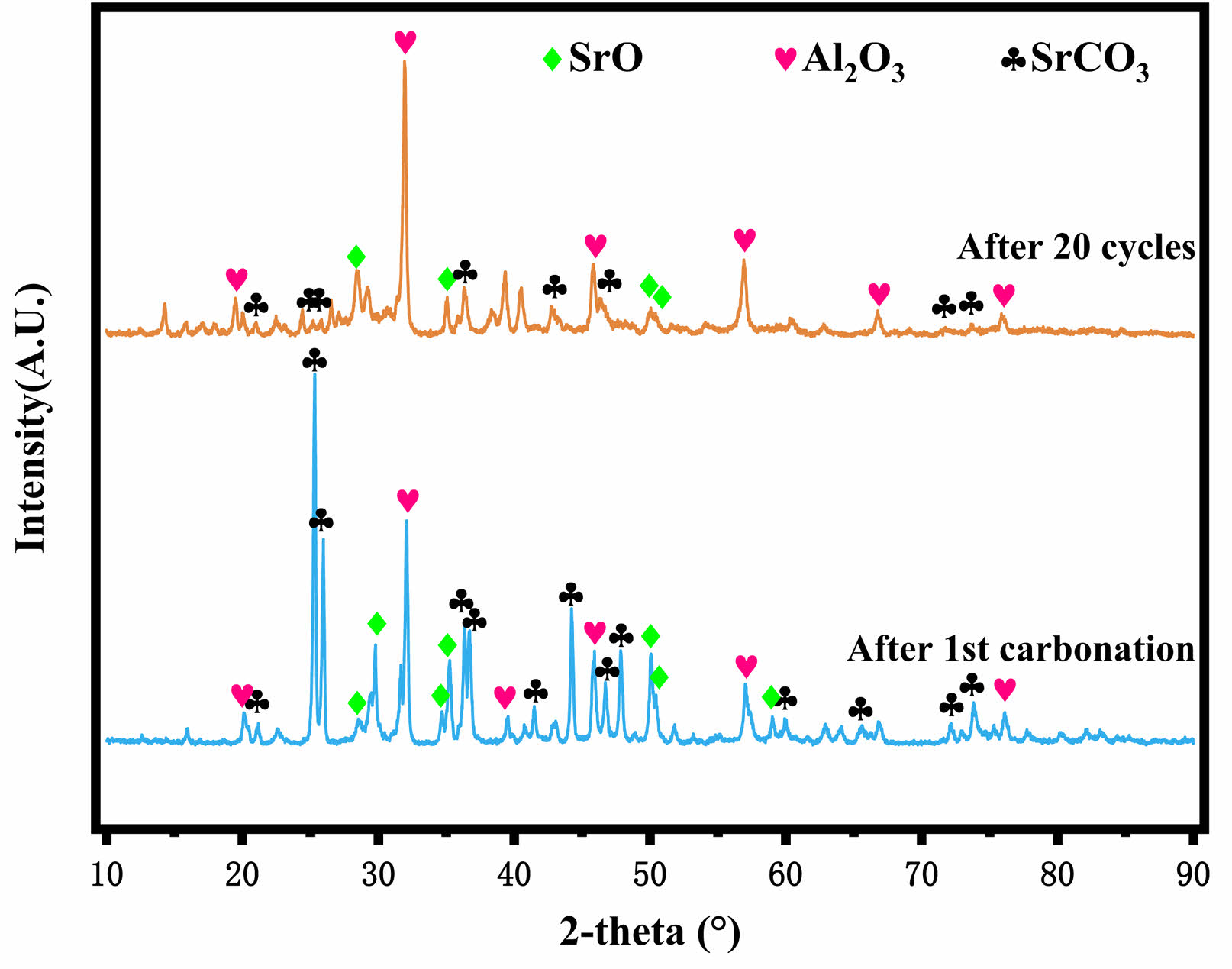

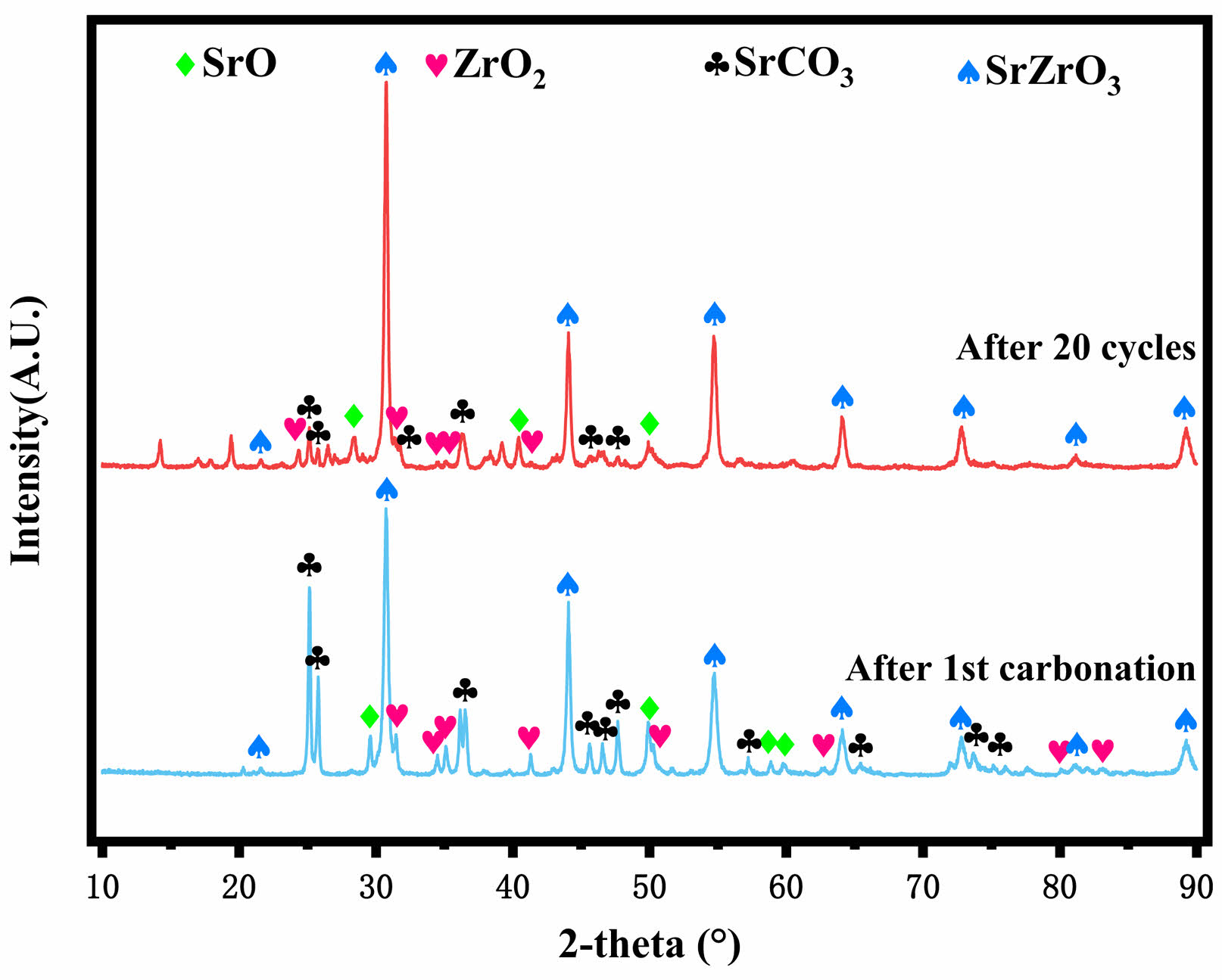

Fig. 5 and Fig. 6 show the XRD patterns of Al-2SrO and Zr-2SrO after primary carbonation and 20 cycles, respectively. Although they have been desorbed at high temperatures, there are still many characteristic peaks of SrCO₃. And with the increase in cycle times, the number of SrO characteristic peaks is also significantly reduced, which shows that the cyclic stability of Zr-2SrO and Zr-2SrO is not satisfactory. With the increase in cycle times, the adsorption efficiency of the adsorbents is weakening because of the collapse of the pore structure and sintering of the adsorbents. In addition, the characteristic peak of SrZrO₃ was observed in Fig. 6, which indicates that the heat resistant substance SrZrO₃ was produced during the synthesis of Zr-2SrO, and SrZrO₃ was formed by a solid-solid reaction between SrO and ZrO₂ [17].
SEM and EDS analysis

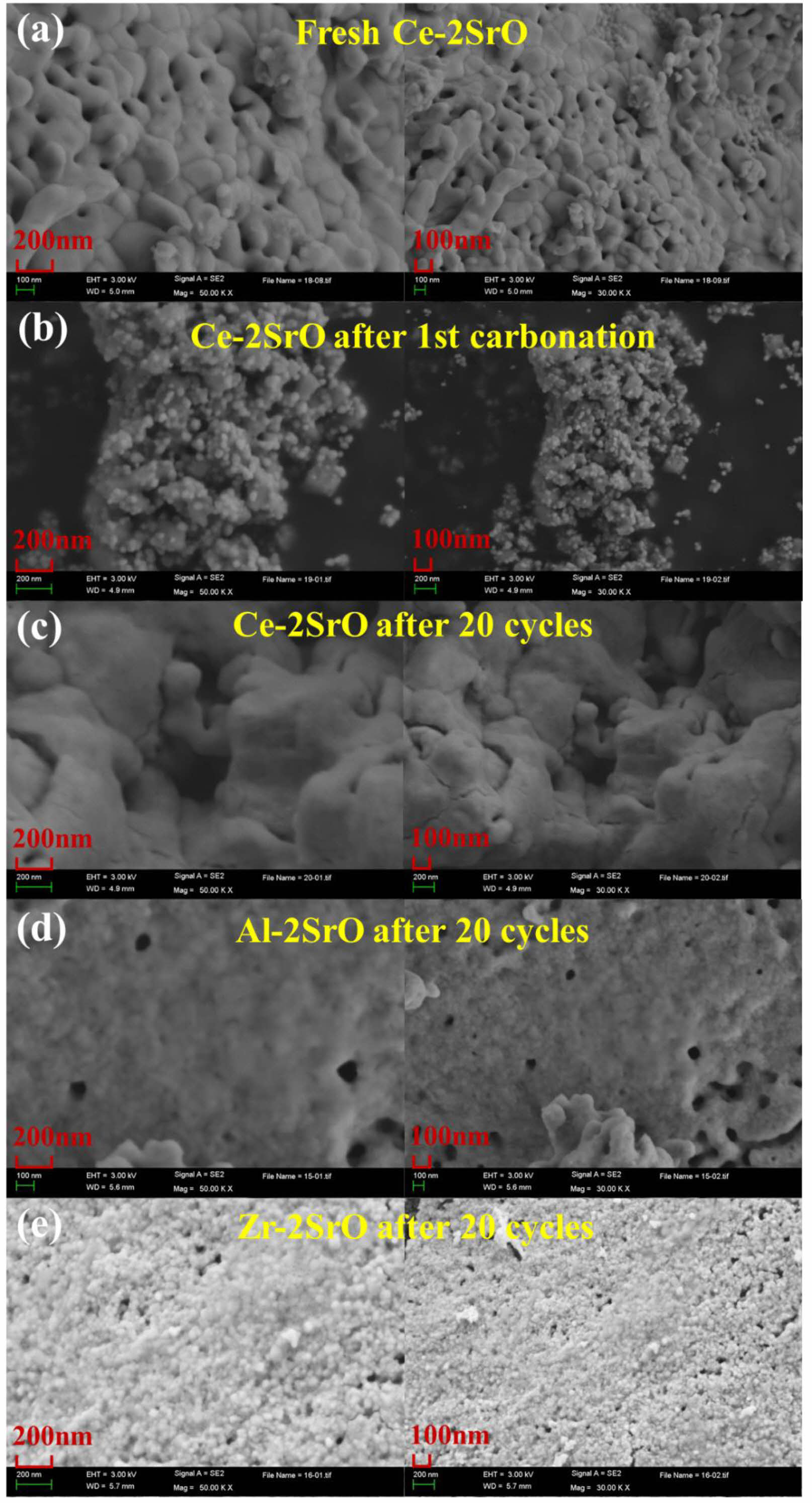

The surface morphology of the Ce-2SrO adsorbent after fresh, first carbonation, and 20 cycles was observed by scanning electron microscopy (SEM), as shown in Fig. 7. From Fig. 7a, it shows that the fresh Ce-2SrO samples have a loose and porous structure, and that many pores are uniformly distributed in the sample particles, which is helpful in realizing an efficient carbonation process. Fig. 7b shows Ce-2SrO samples after the first carbonation. It is clear that many white and uniformly distributed particles appear on the surface of the samples, which may be SrCO₃ particles produced after SrO in the adsorbent fully absorbs CO₂. Fig. 7c shows the microstructure of Ce-2SrO after 20 cycles. It can be found that there are no impurities on the surface of the adsorbent particles, and there are still pore structures and many cracks. These pore structures and cracks can help CO₂ continue to fully contact and react with effective reactants in adsorbent [16]. Fig. 7d-e show the micromorphology of Al-2SrO and Zr-2SrO adsorbents after 20 cycles. It can be seen that Al-2SrO sintering is the more severe, and there is particle agglomeration on its surface, making it difficult for CO₂ to diffuse inside the adsorbent, which can weaken the adsorption performance of the adsorbent. In addition, after 20 cycles the microstructure of the Zr-2SrO adsorbent shows a dense surface morphology, which leads to a decrease in the adsorption capacity of Zr-2SrO adsorbent for CO₂. Ce-2SrO exhibited excellent cyclic stability compared to the other two sorbents, which corresponded to the results of XRD.

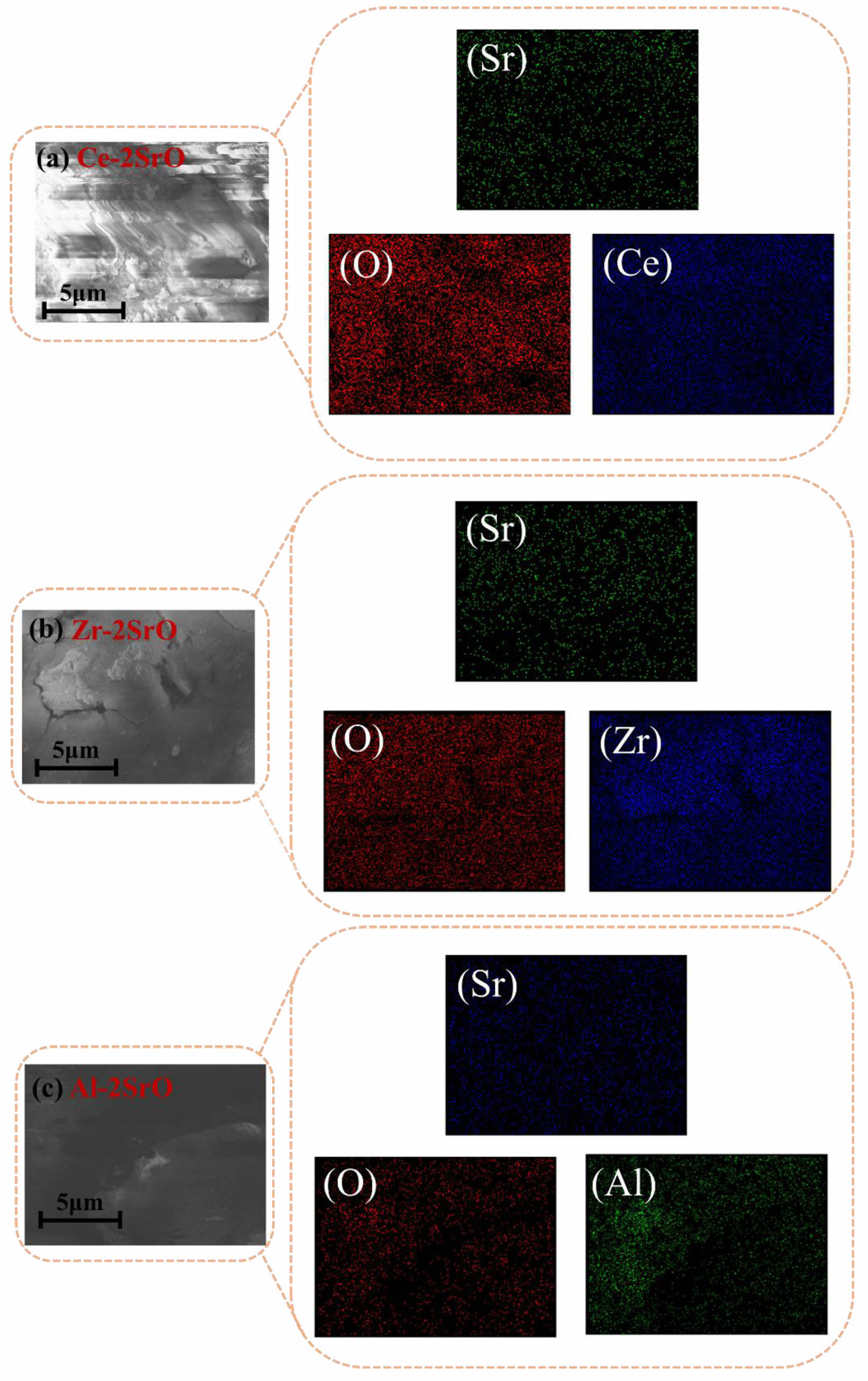

Fig. 8 shows the EDS diagrams of Ce-2SrO, Zr-2SrO, and Al-2SrO, illustrating the uniform distribution and high dispersion of elements in the adsorbent. Fig. 8a confirms the presence of Sr, Ce, and O in the adsorbent, with the distribution of these elements in Ce-2SrO aligning well with the sample selection shape. The atomic percentages of Sr and Ce are 17.76% and 7.85%, respectively, approximating a 2:1 ratio. This, alongside XRD analysis results, substantiates the successful synthesis of Ce-2SrO. Additionally, Fig. 8a reveals the uniform distribution of CeO₂ in the adsorbent, which helps prevent sintering among SrO particles. This maintenance of the pore structure bolsters the adsorbent's cyclic stability. Furthermore, the evenly dispersed SrO particles increase CO₂ active sites, enhancing the CO₂ capture capacity of the adsorbent [17].
BET and N₂ Sorption analysis

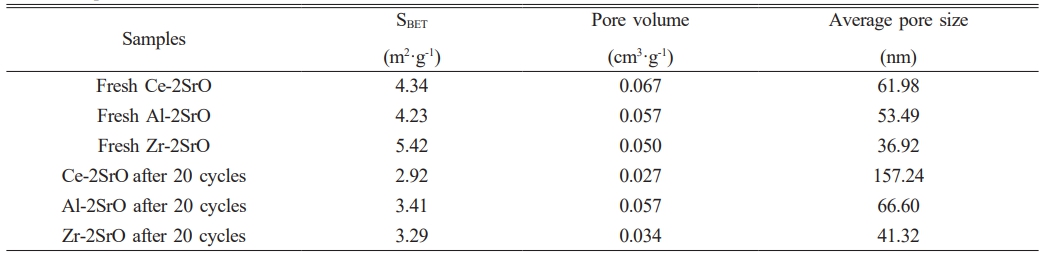

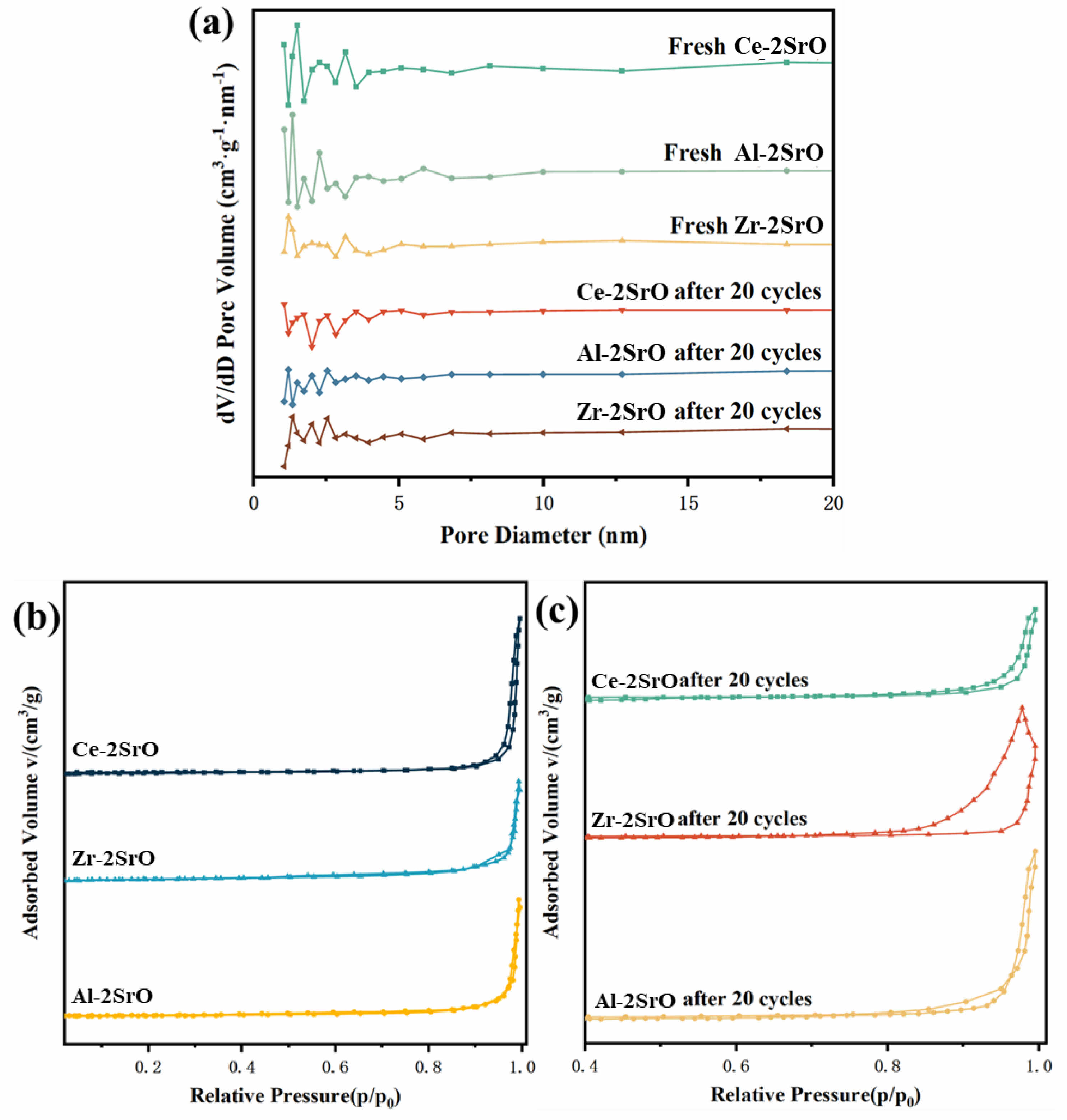

The porous structure can enhance the adsorption capacity and gas transfer rate of CO₂ adsorbents. To further investigate the CO₂ capture capability of SrO-based adsorbents on different supports, three types of samples were characterized using the BET method. The results are displayed in Fig. 9 and Table 1. Fig. 9 presents the pore size distribution curves and N₂ adsorption-desorption isotherms of each sample. As observed in Fig. 9a, fresh Ce-2SrO exhibits a more uniform distribution of pores compared to the other two samples, with a significantly higher proportion of larger pores. The pore size distribution of Ce-2SrO after 20 cycles also shows greater uniformity and a relatively higher proportion of larger pores compared to the other samples. Fig. 9b indicates that the synthesized adsorbents exhibit Type IV isotherms with H3 type hysteresis loops, suggesting the presence of mesoporous structures. The N₂ adsorption capacity of the samples increases sharply at higher relative pressures (p/p₀ > 0.8), and the capacity of Ce-2SrO is notably higher than that of the other adsorbents, indicating a relatively developed porous structure in this sample [18]. Table 2 shows the specific surface area, pore volume, and pore size distribution of each sample. The results demonstrate that Ce-2SrO possesses the largest pore volume and size, along with a relatively high specific surface area. After 20 cycles, the pore size of Ce-2SrO increases to 2.5 times its original size. Adequate pore size effectively prevents the filling and clogging of SrCO₃ during the adsorption process. This confirms the strong CO₂ capture capability of Ce-2SrO, which is consistent with the SEM observation results.
CO₂ Cyclic test analysis

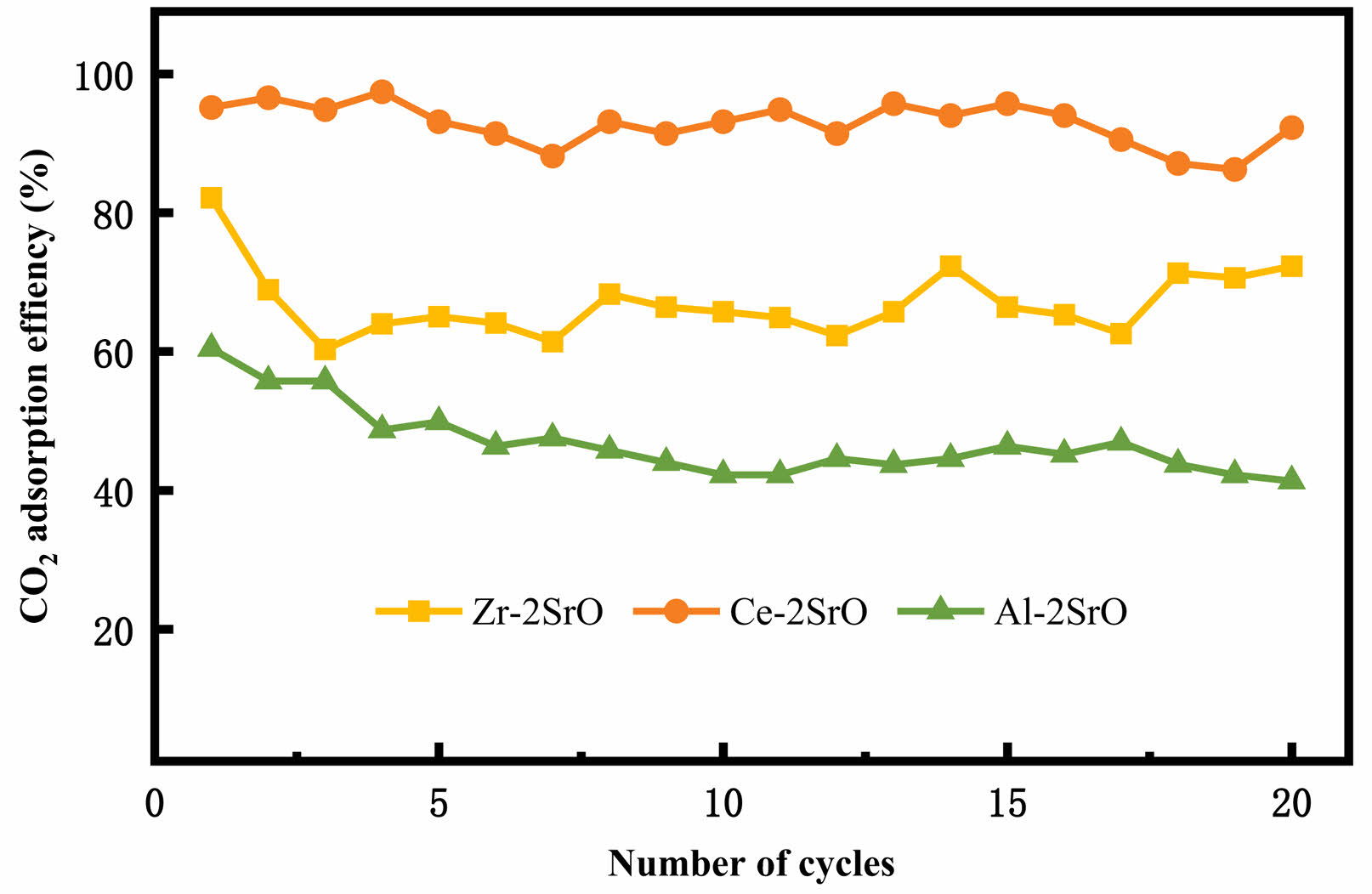

The cycling stability of CO₂ adsorbents plays a crucial role in carbon cycling capture. In this part, multiple cycle experiments were conducted to compare the three types of adsorbents. The CO₂ adsorption efficiency of the sorbents with the carbonation/calculation temperature of 880 ℃/950 ℃ is shown in Fig. 10. It can be clearly seen that Ce-2SrO has a higher adsorption efficiency than the others, and the adsorption efficiency of Ce-2SrO is as high as 97.5%, with an adsorption capacity of 233 mg/g. In addition, due to the addition of CeO₂, the adsorbent has higher cycling stability, and the adsorption efficiency can still maintain 92.3% after 20 cycles, with an adsorption capacity of 220.6 mg/g. The SrO adsorbent Zr-2SrO doped with ZrO₂ can only achieve an adsorption efficiency of 82.2% after the first cycle, and the adsorption efficiency decreases rapidly with the increase of the cycle number. However, the formation of a heat resistant material SrZrO₃ enhances its cyclic performance [17], and the adsorption efficiency ultimately remains around 60%-70%. Al-2SrO adsorbents doped with Al₂O₃ showed an unsatisfactory adsorption efficiency compared with the other two adsorbents, which only reached 60.4% after the first cycle, and with the increase of cycle times, the adsorption efficiency slowly decreased, ultimately dropping to 41.3% after the 20th cycle. This is attributed to the decrease of

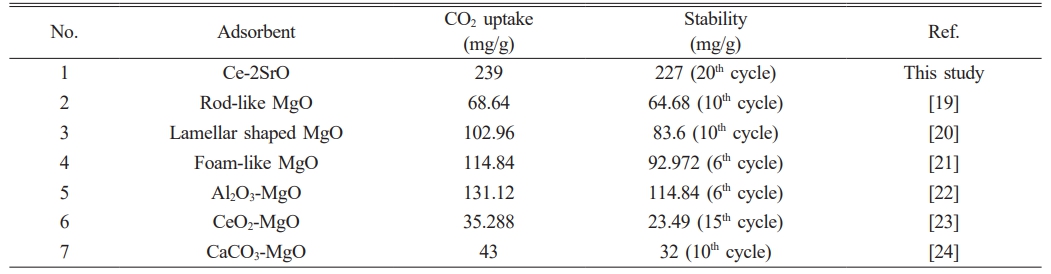

adsorption efficiency caused by sintering of adsorbents at high temperature, which corresponded to the results of XRD and SEM. In addition, we compared the initial adsorption amount and the 20th cycle adsorption amount of Ce-2SrO with other adsorbents, and the summary results are shown in Table 3. The comparison results show that both the initial adsorption amount and the last cycle adsorption amount are higher than other adsorbents, and the adsorption stability is the best.

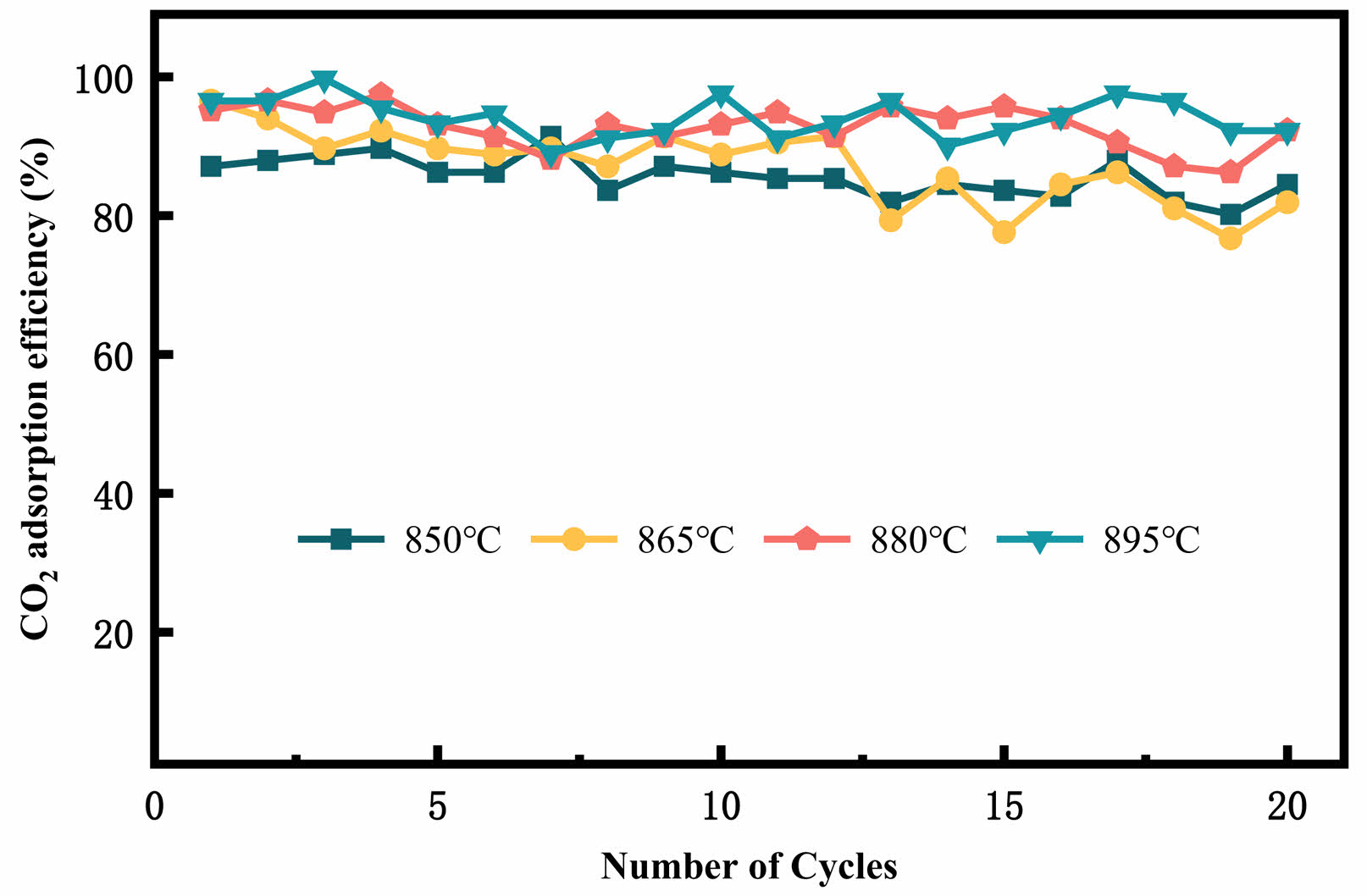

Fig. 11 shows the CO₂ cyclic adsorption efficiency of Ce-2SrO at different carbonation temperatures. As the temperature increases, the adsorption efficiency of the adsorbent also increases. With the increase in cycle numbers, the Ce-2SrO adsorbent can still maintain high adsorption efficiency as well as the stable adsorption capacity. Fig. 12 shows the CO₂ adsorption efficiency of Ce-2SrO at different CO₂ concentrations. It can be concluded that with the increasing of CO₂ concentration, the adsorption efficiency of adsorbent also increases from about 80% to about 95%. This is mainly because that at low CO₂ concentrations, the carbonation process of the adsorbent is not fully completed [25, 26]. Furthermore, as the number of cycles increases, the adsorption efficiency remains stable, also indicating that Ce-2SrO as a CO₂ adsorbent has excellent stability.

In this study, a novel high-efficiency SrO-based adsorbent has been studied that can be used as a promising adsorbent for marine CO₂ capture. The cyclic stability of the three adsorbents was tested by the CO₂ cyclic adsorption experiment. In addition, the adsorption efficiency of Ce-2SrO at different carbonation temperatures and CO₂ concentrations was also discussed. The physical and chemical properties of the adsorbent were characterized by XRD, SEM, EDS, and BET. The main conclusions can be drawn as follows.
(1) The adsorption efficiency of Ce-2SrO was nearly 100% (99.74%) at a carbonation temperature of 895 ℃, reaching a theoretical adsorption capacity of 239 mg/g. In addition, the adsorption efficiency did not fluctuate obviously in 20 cycles of CO₂ adsorption experiments, and remained at about 95%. The average adsorption efficiency was 94.3% in 20 cycles. Therefore, Ce-2SrO has excellent adsorption efficiency and cyclic stability.
(2) XRD results show that SrO in Ce-2SrO adsorbent can be completely converted into SrCO₃ during carbonation. After 20 cycles, the characteristic peaks of the Ce-2SrO adsorbent remained the same as those of fresh samples, which indicated that the Ce-2SrO adsorbent had a high conversion rate and high cyclic stability. The results of SEM show that CeO₂ can be effectively used as a support for SrO. After 20 cycles of experiments, CeO₂ can maintain a porous structure and produce cracks to promote the full reaction between CO₂ and adsorbent. The BET results indicate that compared to the other two adsorbents, Ce-2SrO has the largest pore volume, pore size, and relatively high specific surface area, and still has the largest pore volume after 20 cycles. This can effectively demonstrate that Ce-2SrO has excellent CO₂ adsorption capacity and cycling stability.
(3) Under the experimental conditions of carbonation/calcination temperature of 880 ℃/950 ℃, the adsorption efficiency of CO₂ is in the order of Ce-2SrO>Zr-2SrO>Al-2SrO. The adsorbent with CeO₂ as the support can still maintain excellent adsorption efficiency and cycling stability after 20 cycles. However, Zr-2SrO and Al-2SrO cannot maintain good adsorption efficiency and cycling stability. As the number of cycles increases, the adsorbent will sinter and destroy its pore structure. In general, Ce-2SrO can be used as a novel high-performance adsorbent for CO₂ capture from marine exhaust.
