Lead-free Bi₂O₃ - B₂O₃ - ZnO glass is a commonly synthesized glass system at low temperatures for coating applications for materials such as ceramic, glass, metal, etc. TiO₂ or Ag/TiO₂ composite are usually photocatalyst for antimicrobial application. In this study, TiO₂ or Ag/TiO₂ were combined with the Bi₂O₃ - B₂O₃ - ZnO glass system by the technique of rapid cooling of molten glass at 1200^oC. The influence of the TiO₂ or Ag/TiO₂ on the optical characteristics of the Bi₂O₃ - B₂O₃ - ZnO glass system was performed by using X-ray diffraction, Fourier Transform Infrared Spectroscopy, and Ultraviolet-Visible Spectroscopy techniques. The analytical results showed that the band gap energy of the Bi₂O₃ - B₂O₃ - ZnO glass system had a low value. The band gap energy of the system increased with the addition of TiO₂ and decreased slightly with the addition of Ag/TiO₂. In addition, when Ti₂O or Ag/TiO₂ were added, the glass system appeared crystals such as anatase, rutile and silver oxide on an amorphous background. These crystals cause the system's transmittance to decrease and reflectance to increase. However, the appearance of these crystals promises that Bi₂O₃ - B₂O₃ - ZnO glass materials can be applied as antibacterial materials. The antibacterial property is due to the photocatalytic effect of TiO₂ and the ability to kill bacteria Ag₂O

Keywords: Bi₂O₃ - B₂O₃ - ZnO, Ag/TiO₂, photocatalyst, antimicrobial application

The Bi₂O₃ - B₂O₃ - ZnO glass system (BBZ) is a kind of glass synthesized at low temperatures [1, 2]. In the structure network of the BBZ, the [BO_n]^(2n-3)- may create coordinated polyhedral and takes on the task of creating the glass network oxide. The [BiO₃]^3- units and [BiO₆]^9- octahedral can also play a role in the formation of the glass lattice. ZnO plays a role in increasing the glass's stability and making the glass system easy to shape. BBZ has been researched and applied as a shielding material for gamma, transparent dielectric layer, photonic applications, etc [3-5]. Because the low glass forming temperature is one of the important properties of the BBZ, its common application is a coating on different surfaces [6]. To diversify the applicability, some studies have added other elements to the BBZ to improve its properties.
TiO₂ is known as a material with a photocatalytic effect and biologically benign. Therefore, TiO₂ is often applied to treat toxic substances that cause pollution in the environment [7]. TiO₂ exists in different polymorphs such as rutile, anatase, brookite, etc. The band gap (E_g) of TiO₂ is large (~3.0 eV of rutile and ~3.2 eV of anatase) [8]. Therefore, the addition of TiO₂ to the glass not only improves chemical stability [9] but also increases the photocatalytic ability of its. However, one lack of TiO₂ is that photochemistry is difficult to activate with visible light hinders its application. D. Ning et al. showed that doped some precious metals could improve the photocatalytic ability and antibacterial effect [10]. Transition metals, precious metals are usually doped in TiO₂ crystal lattice and combined with semiconductor materials with narrow band gap can create materials more sensitive to visible light, increase their photocatalytic efficiency. Among these metals, silver is cheaper and can be used as a visible sensitive material for photocatalytic activity [11]. Silver nano- particles on semiconductors providing better electron transport would effectively improve photocatalytic activity [12]. In addition, due to its antibacterial properties and low toxicity, metallic silver and oxide silver have long been considered effective antibacterial agents [13]. Therefore, silver doping with TiO₂ promises to increase the antibacterial ability of TiO₂. Besides, doping silver with TiO₂ also makes silver chemically stable and releases silver ions more slowly.
As mentioned above, the BBZ is a low-temperature glass system that can be applied as coatings for ceramic, glass, and metal. When doped with TiO₂ and silver into the glass base can also control the energy of the band gap, making glass more sensitive to visible light, increasing the photocatalytic efficiency and antibacterial properties. In this study, the optical properties of the BBZ were investigated when combined with TiO₂ and Ag/TiO₂. The change in optical properties of the BBZ was studied by using X-ray diffraction, Fourier Transform Infrared Spectroscopy, and Ultraviolet-Visible Spectroscopy methods.

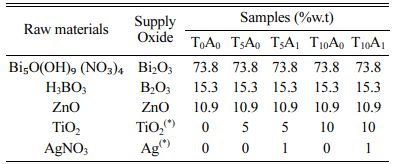

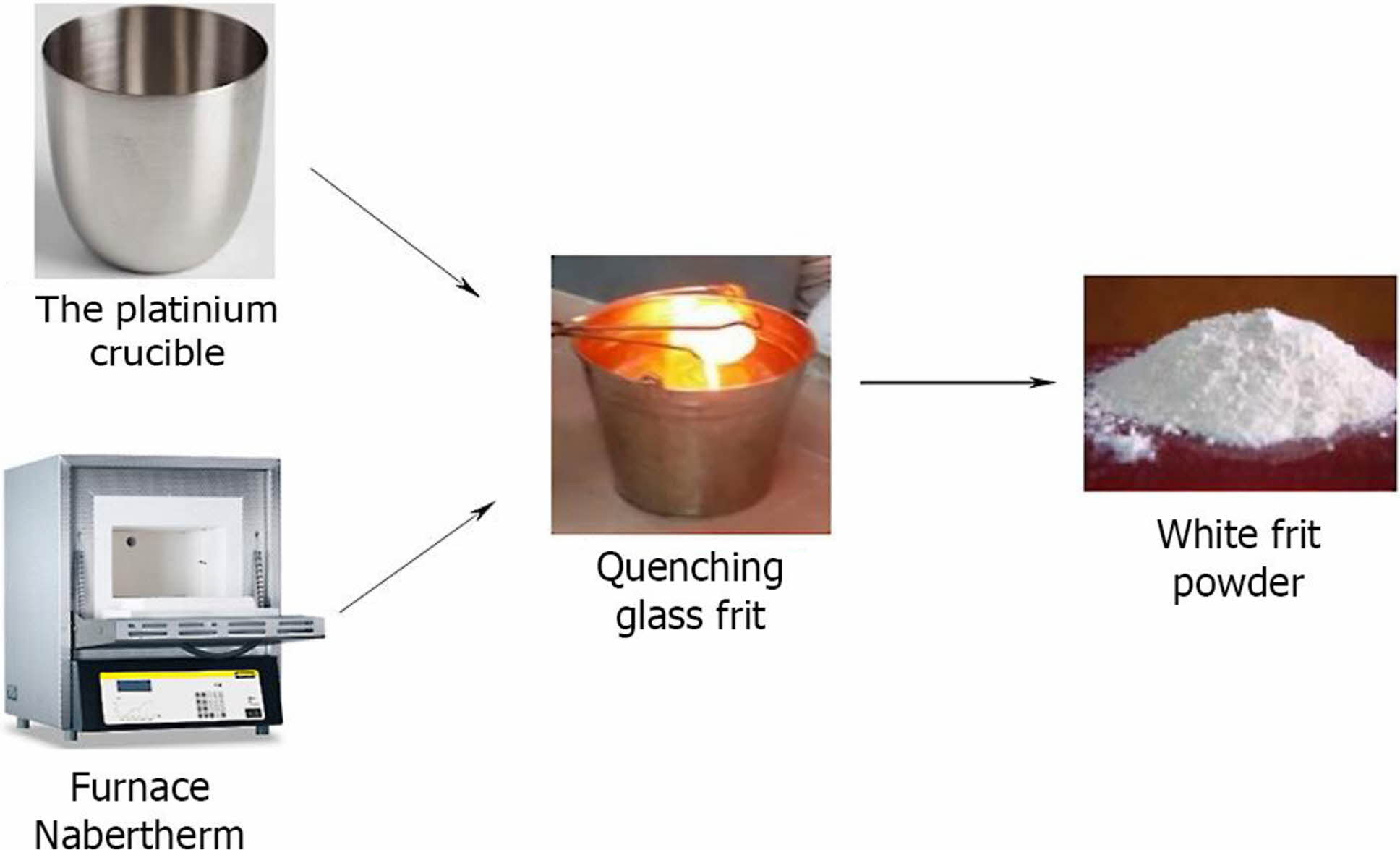

The chemical composition of the BBZ was chosen by considering the equilibrium phase diagram of the ternary system of the BBZ [14]. The selected basic chemical compositions were (% wt.): 73.8% Bi₂O₃, 15.3% B₂O₃, and 10.9% ZnO. TiO₂ and Ag/TiO₂ were added into the basic glass compositions according to the ratios given in Table 1. The raw materials used in this study are also presented in Table 1. The samples were fabricated as shown in Fig. 1. The raw materials were mixed. The mixtures were formed into glass by using conventional melt quenching techniques. The muffle furnaces (L5/13/P330 Nabertherm model) was used to melt each batch of this glassware in a Pt crucible at 1,200 ^oC for 90 minutes. The heating rate was 5^oC/min. Glasses after vitrifying were milled in a planetary mill for 2 hours to obtain a fine glass powder with sizes passed through a sieve with 125 µm.
The optical properties of the glasses were measured by UV-Vis reflectance spectroscopy. The model was used Lambda 950 of Perkin Elmer. The UV-Vis analysis condition was wave range from 250-880 nm, the step of 5 nm. The thickness of the samples was 1 cm. From the UV-Vis results, it is possible to calculate the band gap energy of the formed glass by formula (1). The relationship between band gap energy and absorption coefficient α is shown in formula (1) [15]. Where α is molar absorptivity, h is Planck’s constant, u is the frequency of light (u = c/l), c is the speed of light, l is the wavelength of light, B is constant, E_g is band gap energy. According to previous study, the optical properties of the BBZ exhibit an indirect band gap. Therefore, the value of m is chosen to be 1/2 for the BBZ [16].



To determine the band gap energy, the graph and functional eq. (2) are determined from the results of UV-Vis spectroscopy.



The E value of the function (2) is determined from UV-Vis results according to formula (3). The value of absorption coefficient α of function (2) is determined from UV-Vis results and Beer – Lambert's equation according to formula (4). Where A is the absorbance and is determined on the UV-Vis spectrum, l cm is the thickness of the sample.



The inflexion point of graph (2) is determined by solving the second derivative eq. (5). Then, construct a tangent equation to the function (ahu)^m = f(E) at the inflexion point. The intersection between the tangent equation and the X-axis is the value E_g.



The microstructure characteristics of these glasses were analyzed by using X-ray diffraction (XRD) methods, Fourier Transform Infrared Spectroscopy (FTIR). The XRD analyzer was a D2 Phaser model of Bruker. The XRD analysis condition was scanning 2theta degree from 20-80^o, scanning step of 0.02^o, and use Cu K_α radiation (λ = 0.154 nm). The FTIR analyzer was the Nicolet 6700 model of Thermo Scientific. The FTIR analysis condition was scanning wavenumber from 450-2000 cm^-1 and scanning step of 0.96 cm^-1.

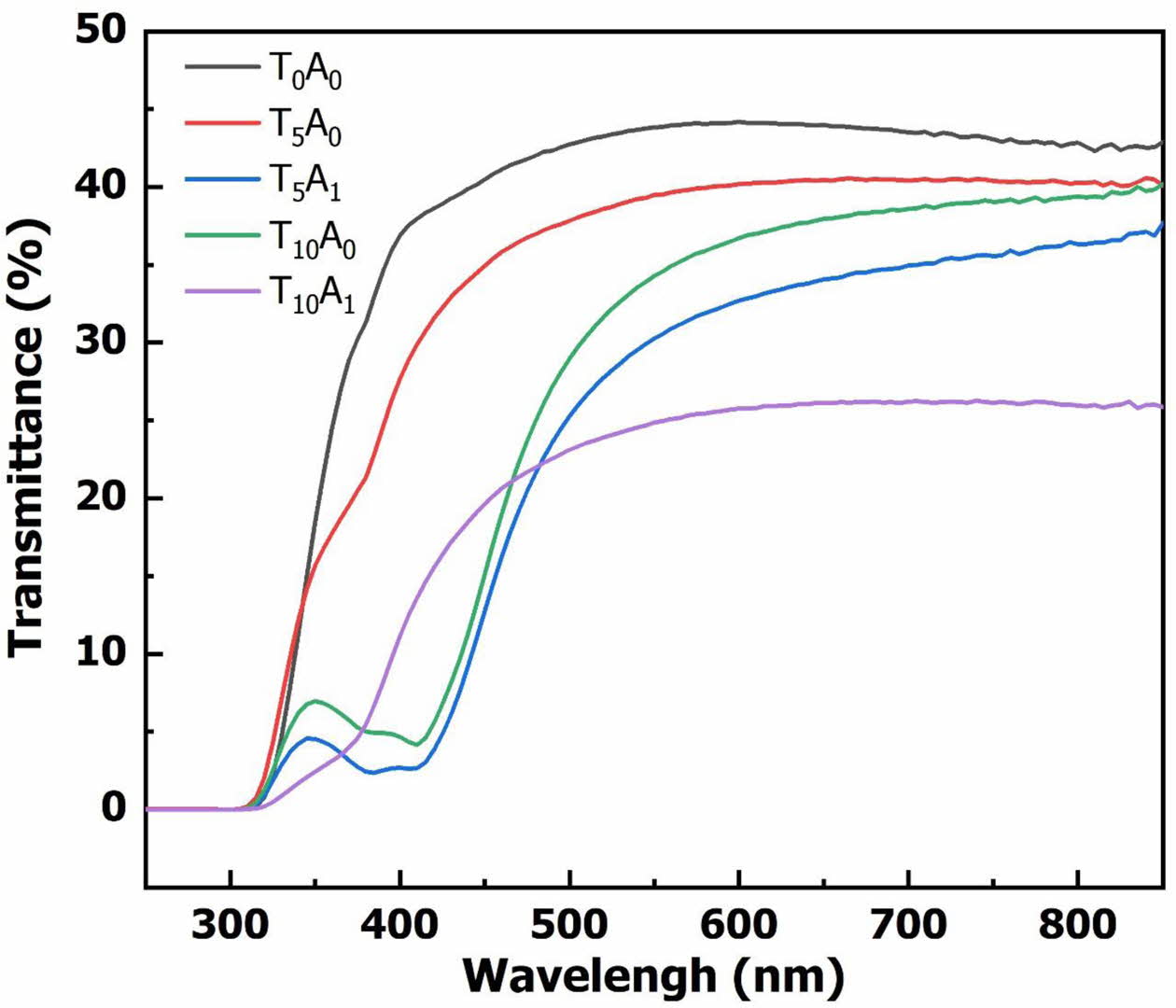

Fig. 2. shows transmittance spectrum of glass samples after vitrifying at 1,200 ^oC for 90 min. The results of the transmittance spectrum in Fig. 2. showed that the background glass (sample T₀A₀) had the highest transmittance. This property demonstrated the optical transparency of the BBZ. However, with the addition of TiO₂ to the base glass (T₅A₀ and T₁₀A₀), the transmittance of the glass system decreased. The transmittance of the system continued to decrease with increasing TiO₂ content from 5% to 10%. When Ag/TiO₂ was added to the base glass system (T₅A₁ and T₁₀A₁), the transmittance decreased compared with the sample only adding TiO₂.

Effect of the band gap on the transmittance

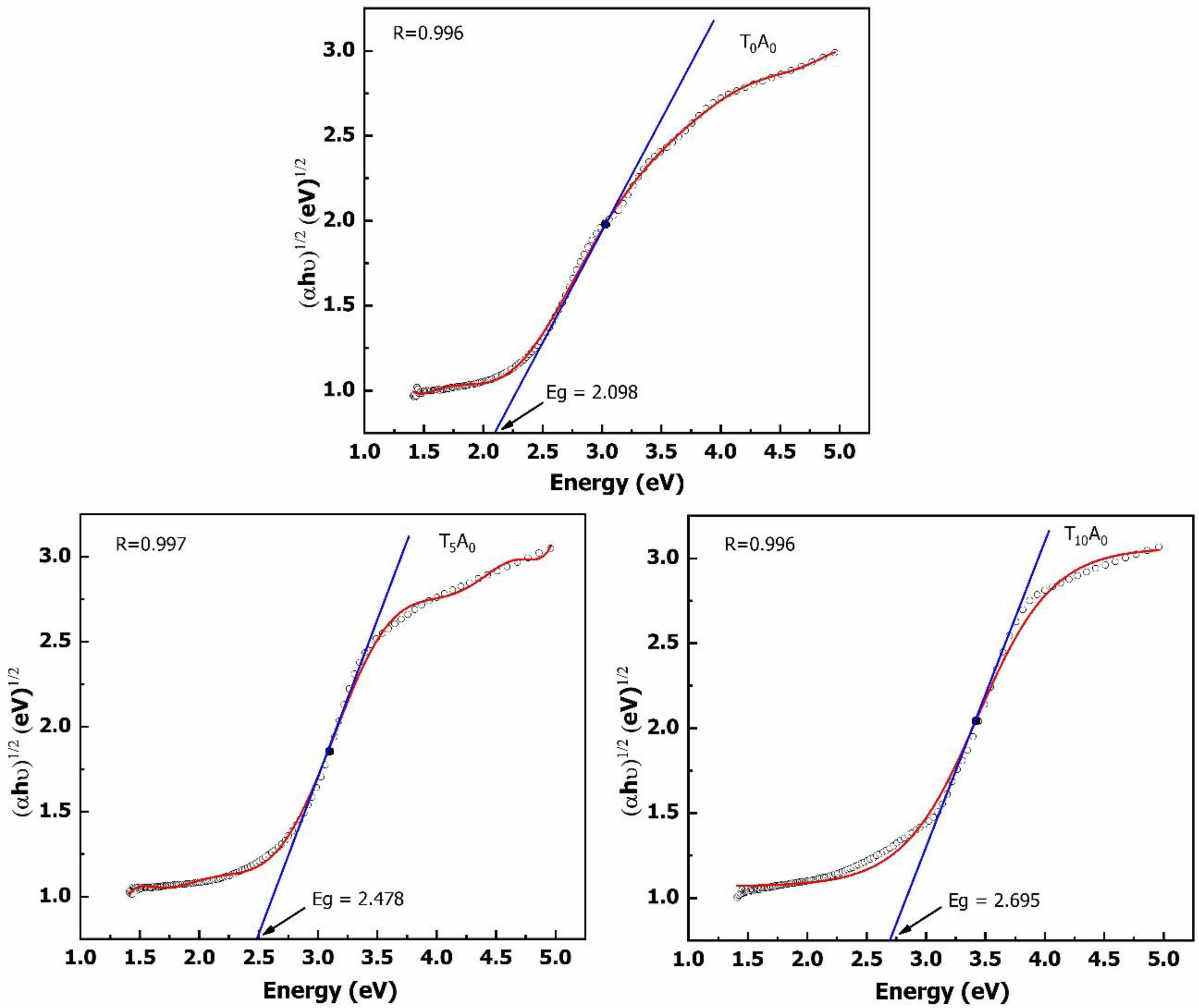

V. Anand et al. showed that the transmittance of glass decreases due to the reduction in band gap energy of glass [17]. Fig. 3. and Fig. 4. plot between (ahu)^1/2 and energy used to determine the band gap energy of the glass samples from the UV-Vis spectrum. The Dose-Response model has been selected to build the regression equation passing through the points represented on the graph. The intersection between the X-axis and the tangent line at the inflexion point of the regression equation helps determine the glass sample’s band gap energy value. The band gap energy results in Fig. 3. and Fig. 4. showed that the band gap energy of the BBZ had a low value (2.098 eV).
When TiO₂ or Ag/TiO₂ was added, the band gap energy of the glass system was increased compared to the base glass system. With the glass samples only adding TiO₂, the band gap energy was increased to 2.478 eV (T₅A₀) and 2.695 eV (T₁₀A₀). With the glass samples supplemented with Ag/TiO₂, the band gap energy was slightly reduced to 2.337 eV (T₅A₁) and 2.642 eV (T₁₀A₁). This study's band gap energy determination results show that the band gap energy was increased when TiO₂ or Ag/TiO₂ was added to the basic glass. Therefore, it could be seen that, in this case, the change band of gap energy was not the cause of the decrease in optical transmittance of the BBZ glass system.
With the glass samples only adding TiO₂, Fig. 3. showed that the addition of TiO₂ to the BBZ prolonged the band gap energy of the basic glass system. The increased band gap energy with the addition of TiO₂ could open up applications as photocatalysts for these materials. When TiO₂ receives radiation energy, the electron hopping from the valence region to the conduction region will help to form holes (h⁺) and electrons (e^-). The hole (h⁺) will ionize water molecules to form (•OH) and the electron (e^-) will ionize oxygen to form (•O^2-) [18]. The reaction between these ions with organic radicals in bacteria will create an antibacterial material.

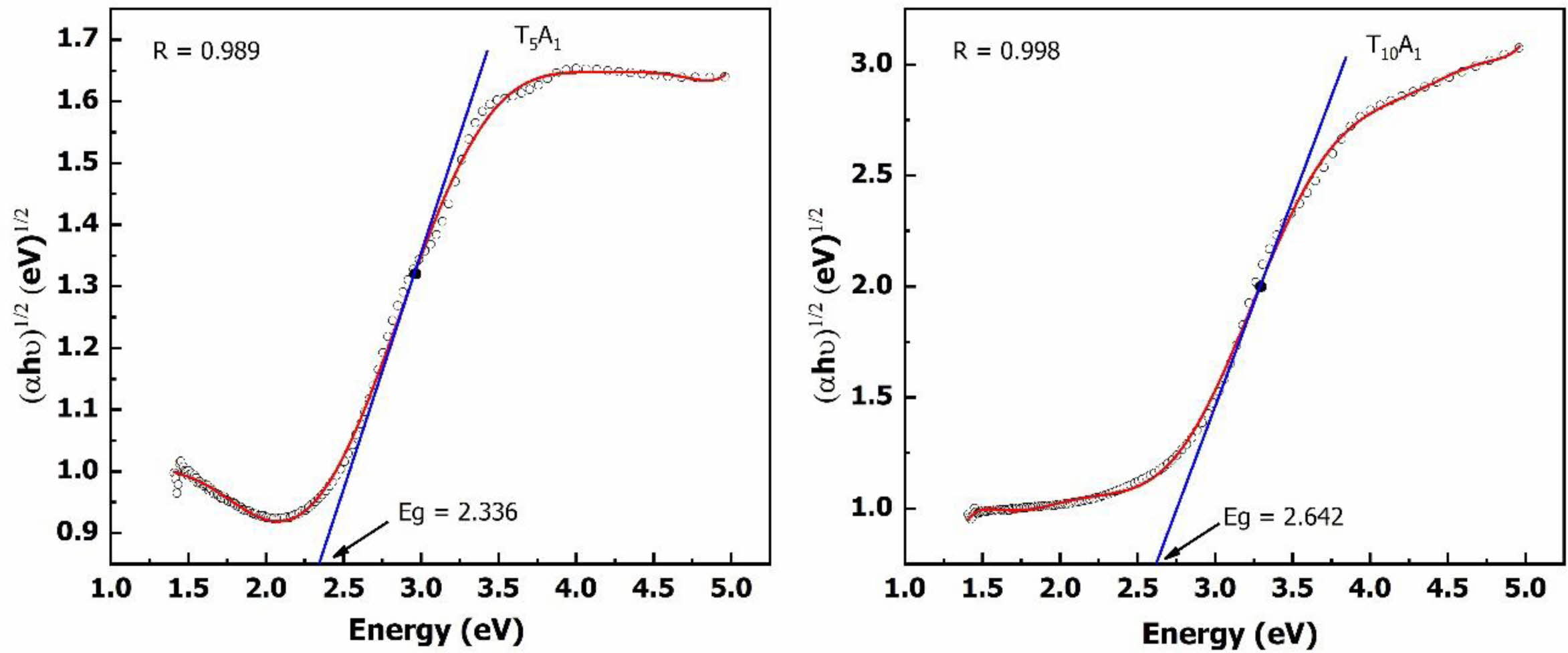

Fig. 4. also showed that when Ag/TiO₂ was added to the BBZ, the band gap energy decreased slightly compared to the case of adding only TiO₂. The band gap energy of samples supplemented with 5% TiO₂ and 1% Ag was decreased from 2.478 eV to 2.336eV, the band gap energy of samples supplemented with 10% TiO₂ and 1% Ag was decreased from 2.695 eV to 2.642 eV. Silver reduces the band gap by creating traps between the conduction and valence bands. Reducing the band gap energy can reduce the photocatalytic performance of the BBZ. However, the addition of silver to the glass composition promises to improve the bactericidal ability of glass [13]. The band gap energy change explained by the interaction between Ag, TiO₂, and the base glass can be observed by FTIR spectral analysis.

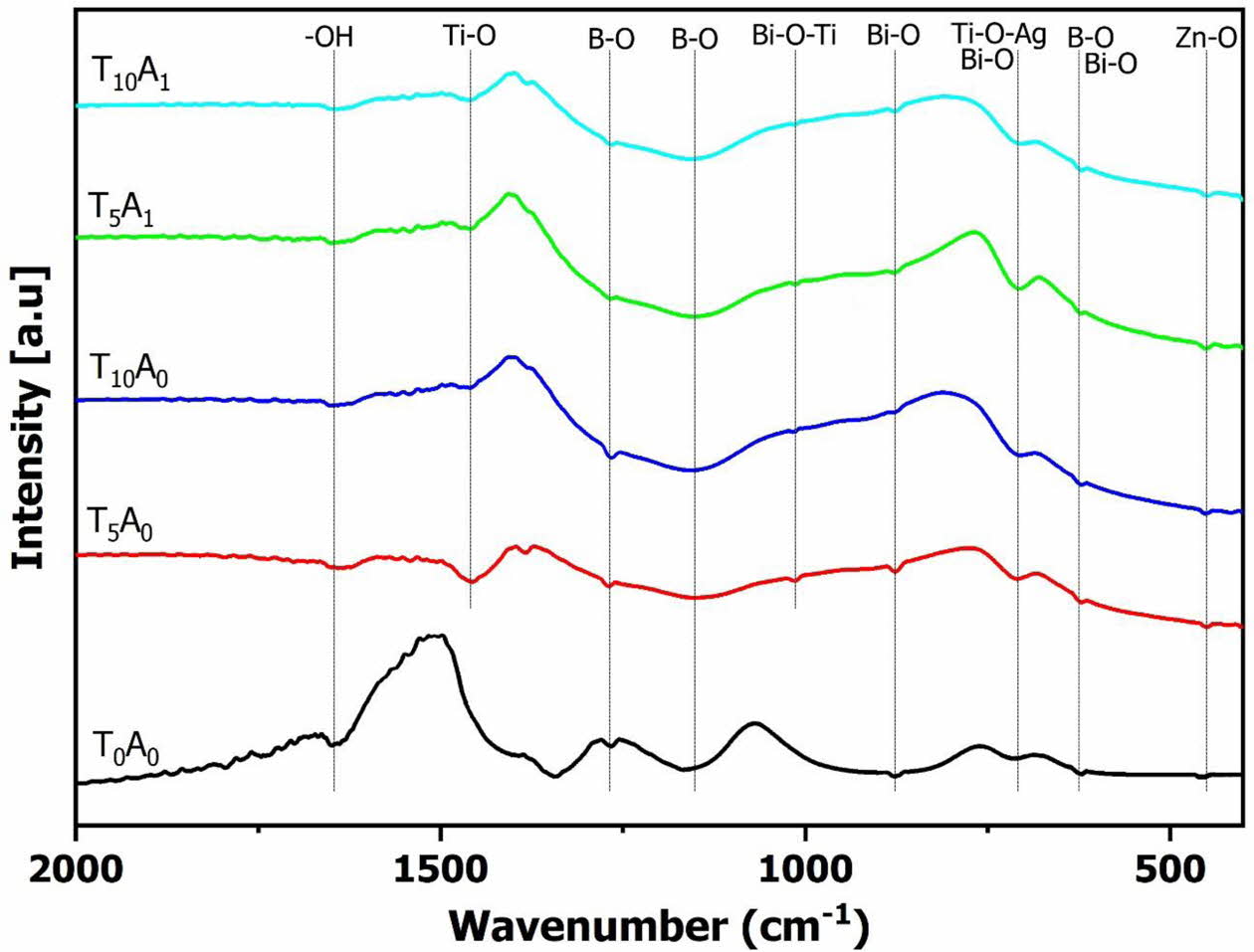

Fig. 5. shows the FT-IR spectrum of the glass samples after vitrifying at 1,200 ^oC at different compositions. The FTIR spectra of T₀A₀ in Fig. 5. showed that the vibrations such as 1,643 cm^-1 was typical for the -OH group; 877 cm^-1 was a characteristic of planar [BiO₃]^3-; 715, 620 cm^-1 represented the tetrahedron [BiO₆]^9-; 1279, 609 cm^-1 were typical for planar [BO₃]^3-; 1144, 607 cm^-1 were typical for tetrahedral [BO₄]^5-; 435 cm^-1 was typical for the ZnO group [19-22]. The [BO₃]³, [BO₄]^5-, [BiO₃]^3-, and [BiO₆]^9- groups were the basis for forming the glass lattice in the BBZ. Bi₂O₃ and B₂O₃ were also why the BBZ glass system could be formed at low temperatures.
With the glass samples only adding TiO₂, besides the characteristic vibrations of the BBZ, the FTIR spectrum of T₅A₀ and TA₀ also appeared to vibrate at wavenumber position 1,456-1,465 cm^-1 and 1,057 cm^-1. These vibrations are characteristic of the Ti-O-Ti bond and the Bi-O-Ti bond [19, 23]. The Ti-O-Ti bond demonstrated the presence of TiO₂ distributed in the base glass. As mentioned in Fig. 3., the band gap energy of the BBZ increased when TiO₂ was added to the composition. This result is contrary to most previous studies on the addition of TiO₂ to the base glass [24, 25]. In this study, TiO₂ content was used in a large amount (5-10% compared to 0-2% TiO₂ of previous studies). The vibrations of Bi-O-Ti and Ti-O-Ti simultaneously appeared on the FTIR spectrum, indicating that TiO₂ not only participates in binding with bismuth to form glass but also exists in free form. The free TiO₂ extended the band gap of the BBZ. With the additional samples Ag/TiO₂, the wavenumber at 702-708 cm^-1 on the FTIR spectrum of T₅A₁ and T₁₀A₁ has an absolute intensity higher than other samples. This wavenumber position corresponds to the position of the Ti-O-Ag bond [26]. The Ti-O-Ag bond causes an additive effect to increase the intensity of the vibration at 702-708 cm^-1. The interaction between Ag and TiO₂ formed the Ti-O-Ag bond. The formed bond has reduced the band gap energy of the BBZ, as shown in Fig. 3. and Fig. 4.

Effect of the formed crystals on the transmittance

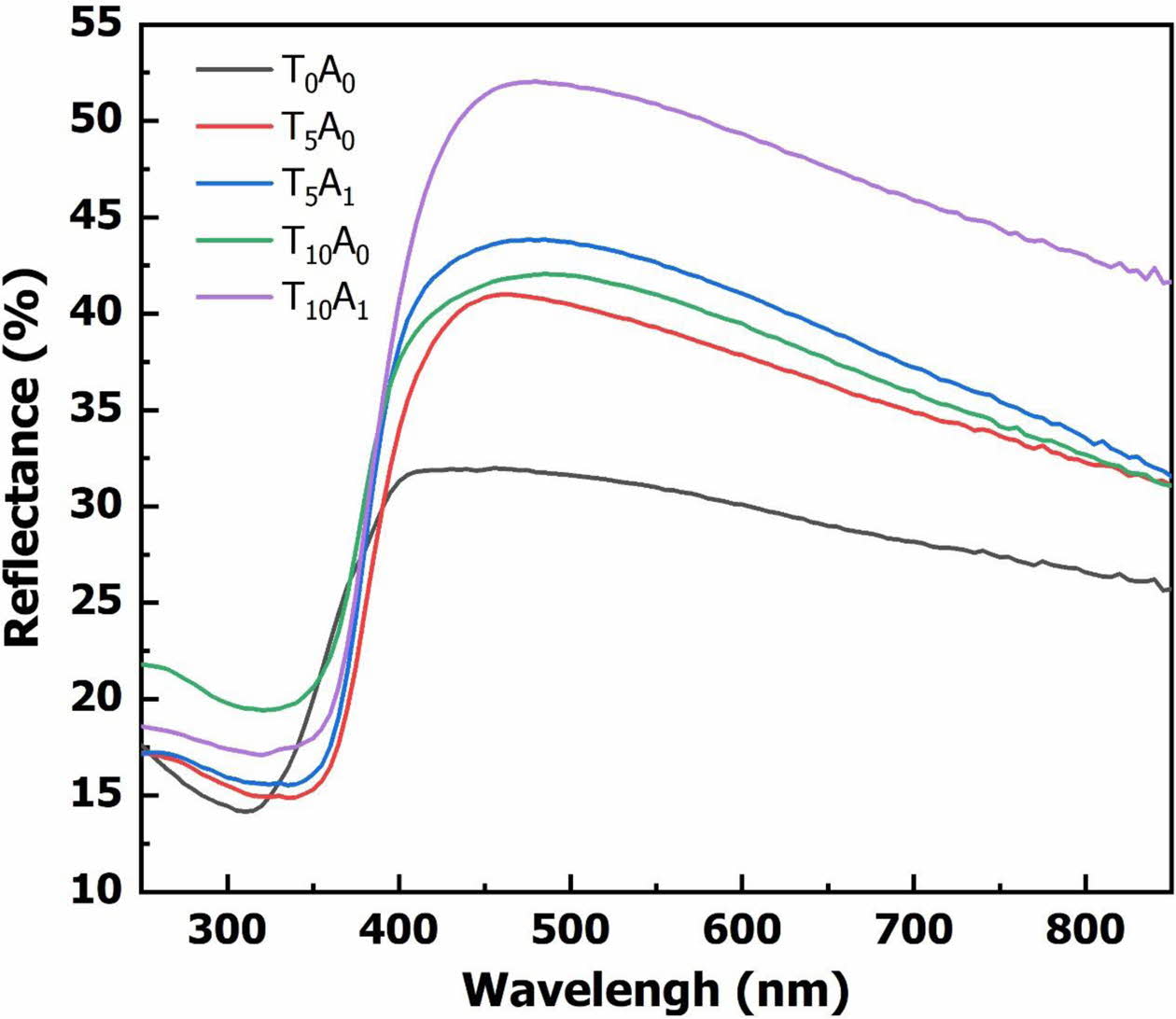

Besides the band gap energy, the transmittance of the glass is also affected by the number of crystals in the base glass. The reflectance analysis results in Fig. 6. showed that the reflectance increased when TiO₂ or Ag/TiO₂ were added to the BBZ. When adding Ag/TiO₂ to the system, the reflectance increased more strongly than adding only TiO₂. This result implied that the crystal could be formed when adding TiO₂ or Ag/TiO₂. To clarify this issue, the XRD analysis method was used to evaluate the phase composition of the glass samples.

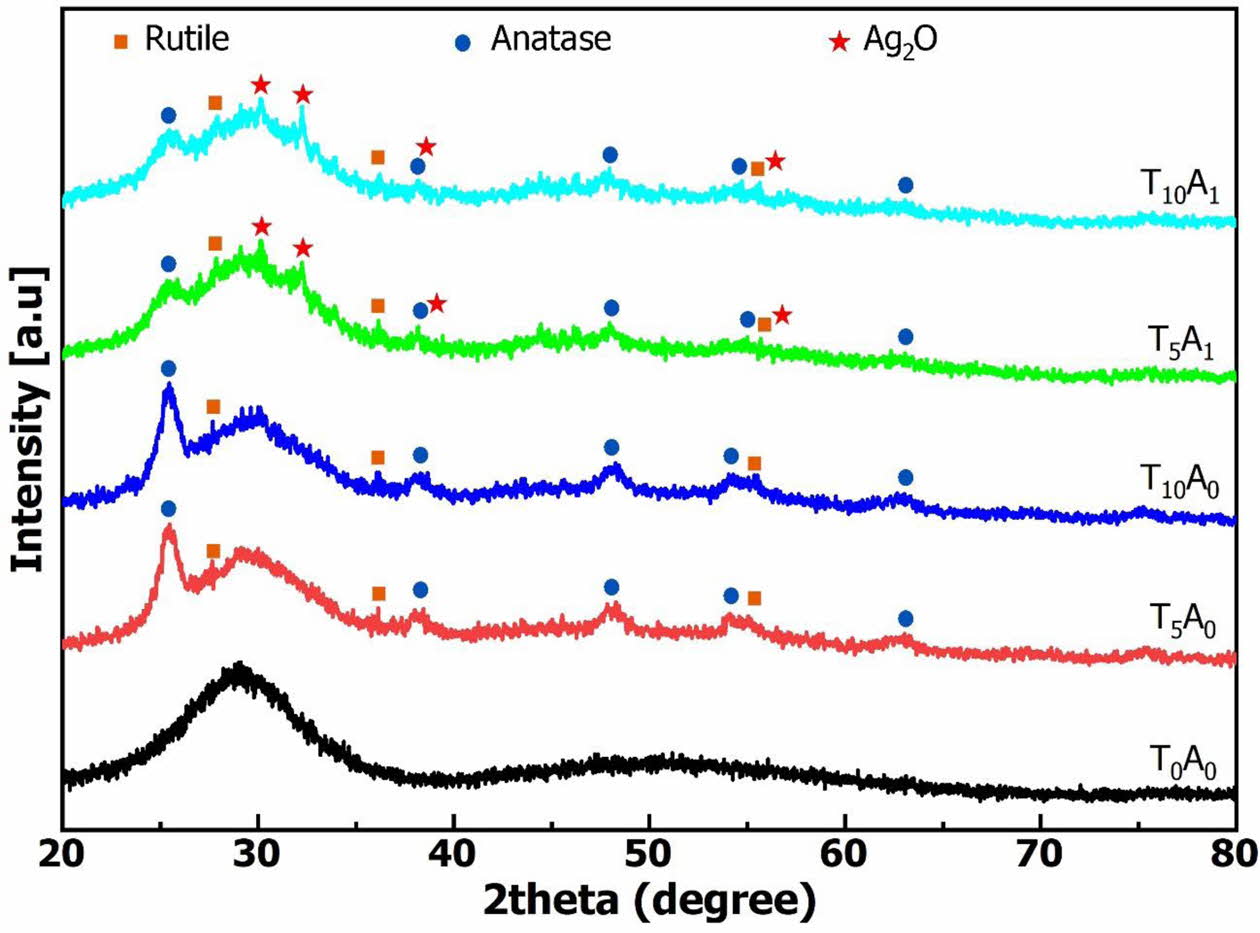

Fig. 7. shows the XRD pattern results of the glass samples after vitrifying at 1,200 ^oC. The XRD patterns showed that in all samples, a large diffraction area of the amorphous phase has appeared from 20 to 40^o [3]. This result demonstrated that there was glass formation in all ingredients at 1,200 ^oC vitrifying temperature. The XRD result of T₀A₀ showed no appearance of crystal peaks. The main phase was the amorphous phase. For samples with TiO₂ or Ag/TiO₂, amorphous was still the main phase appearing on the XRD patterns. However, besides the amorphous phase, the XRD patterns of these samples also appeared crystals. The crystals formed include anatase, rutile and Ag₂O. These crystals caused the higher reflectance of the T₅A₀, T₅A₁, T₁₀A₀, and T₁₀A₁ than the T₀A₀ sample, as mentioned in the results in Fig. 6.
Q. Chen et al. showed that added TiO₂ with a low content would participate in the glass forming process, and the XRD pattern wouldn’t appear peak of the TiO₂ crystal [25]. In this study, with 5% and 10% TiO₂ used, the XRD pattern of glass samples containing TiO₂ (in Fig. 7.) appeared diffraction peaks representing anatase (R060277) at diffraction positions 25.22^o, 38.43^o, 47.85^o, 53.72^o, and 62.63^o [27] and rutile (R060745) at the diffraction position 27.34^o, 36.20^o, and 54.86^o [28]. The formed anatase and rutile crystals proved that TiO₂ not only participated in glass formation but also formed free crystals distributed on an amorphous background. Anatase and rutile are two minerals with high band gap energy. Therefore, anatase and rutile created an additive effect to increase the band gap of the BBZ. Anatase and rutile are also photocatalytic minerals. The presence of these two minerals will also open the possibility of photocatalysis for glass. The BBZ with a large amount of TiO₂ added can be applied as a bactericidal glass.
For samples using silver (T₅A₁ and T₁₀A₁), the XRD patterns in Fig. 7 showed the presence of Ag₂O. Ag₂O (JCPDS 41-1104) was shown at the diffraction positions of 26.7^o, 32.8^o, 38.1^o, and 54.9^o in Fig. 7 [29]. As analyzed, the FTIR spectrum (Fig. 5) of T₅A₁ and T₁₀A₁ appeared vibration corresponding to the Ti-O-Ag bond. This binding demonstrated that silver bound to titanium and reduced the band gap energy (Fig. 4). However, the amount of silver did not react completely but was oxidized under temperature to form Ag₂O. So, the XRD patterns showed the presence of Ag₂O. The free Ag₂O present in glass will also promise to improve the bactericidal ability of this material.

This study used the base glass composition of 73.8% Bi₂O₃ - 15.3% B₂O₃ - 10.9% ZnO (%w.t) to investigate the optical properties when adding TiO₂ or Ag/TiO₂. In the amorphous state on the XRD patterns, the bonds of [BO₃]^3-, [BO₄]^5-, [BiO₃]^3-, and [BiO₆]^9- on the FTIR spectrum proved to be possible to make the BBZ at 1200^oC for 90 minutes. When TiO₂ or Ag/TiO₂ were added to the matrix glass, the XRD and FTIR results of the samples also showed that TiO₂ and Ag not only participated in glass formation but also formed anatase, rutile and Ag₂O crystals distributed on the amorphous background. These crystals have increased reflectance and reduced transmittance of the base glass. Calculating the band gap of the glass systems from the UV-Vis spectrum has shown that the band gap energy of the background glass system is low (2.098 eV). The band gap energy increased with the addition of TiO₂ (2.478 eV of 5% TiO₂ and 2.695 eV of 10% TiO₂). The band gap energy decreased slightly with the addition of Ag/TiO₂ (2.336 eV of 1% Ag/5% TiO₂ and 2.642 eV of 1% Ag/10% TiO₂). The presence of anatase and rutile increased the band gap energy of the increased glass system. Thanks to the photocatalytic properties of anatase, rutile and the bactericidal ability of free Ag₂O, the BBZ combined with TiO₂ or Ag/TiO₂ can be applied as a low-temperature surface coating material antibacterial ability.
