In this paper, we successfully synthesized the Li₃PO₄ coated Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ cathode and investigated electrochemical performances and structure morphology for high-energy lithium-ion battery. The Li₃PO₄ coated Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ shows superior cation mixing and there is no significant change in morphology compared to the pristine NCM. In particular, the Li₃PO₄ coated Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ exhibits an improved rate capability of 176.5 mAh g^-1 at 4.0 C and cyclability of 80.2% (after 80 cycles). Therefore, the Li₃PO₄ coated Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ cathode can be deemed as an effective method for next-generation Li-ion batteries

Keywords: Li₃PO₄-coated Ni-rich layered LiNi_0.8Co_0.1Mn_0.1O₂, superior cation mixing, improved electrochemical performances, Li₃PO₄ coating layer, next-generation Li-ion batteries

Recently, there is an increasing demand for lithium-ion batteries (LIBs) to use in electric vehicles (EVs), hybrid electric vehicles (HEVs) and energy storage systems [1, 2]. It is well known that LIBs have various advantages such as high energy, long lifespan, low price and good stability [3, 4]. Up to now, LiCoO₂ (LCO) is widely applied to the cathode material, since it has good reversibility and stable discharge plateau. On the other hand, LCO has severe drawbacks of high price, thermal instability and environmental damage [5].
Currently, LiNi_xCo_yMn_1-x-yO₂ has intensively inves- tigated as a replacement for LCO. The main merits of LiNi_xCo_yMn_1-x-yO₂ are superior electrochemical performances, low price and environment friendly compared to LCO [6, 7]. In particular, high Ni content (x > 0.8, Ni-rich LiNi_xCo_yMn_1-x-yO₂) contributes to extraordinary reversible specific capacity. However, Ni-rich LiNi_xCo_yMn_1-x-yO₂ cathode suffers from capacity decay and inferior cyclability owing to the similar ionic radius of Ni²⁺ (0.69 Å) and Li⁺ (0.76 Å) as well as gas generation reacted by chemical oxidation of the electrolyte, leading to rapid performance degradation of cathode materials during cycle [8-10]. More importantly, the physical/chemical uptakes of lithium residue (Li₂CO₃ and LiOH) on the surface cause the gelation of the cathode slurry [11]. To overcome the above-mentioned shortcomings, considerable efforts have been devoted to find a feasible solution. Surface coating has been verified to provide a protective barrier at the surface of active materials, inhibiting the direct contact between active materials and electrolyte. Various metal phosphate (MP) materials, such as MPO₄ (M = Fe, Ce, Al and Sr) [12, 13], Mn₃(PO₄)² [14] and so on, are used as the attractive coating materials for LIBs.
In this paper, we successfully synthesized the Li₃PO₄-coated Ni_0.8Co_0.1Mn_0.1O₂ (NCM) with investigation of electrochemical performances. Therefore, we can confirm that the Li₃PO₄-coated NCM can enhance electrochemical performances and stabilize the structure of cathode materials.

Spherical NCM powders were prepared via co-preci- pitation method. The NiSO₄·6H₂O, CoSO₄·7H₂O, MnSO₄· H₂O, Na₂CO₃ and NH₃·H₂O are used to yield precursor Ni_0.8Co_0.1Mn_0.1(OH)₂. The precursor Ni_0.8Co_0.1Mn_0.1(OH)₂ and LiOH·H₂O were mixed 1.05:1 molar ratio to prepare NCM. And then NCM was preheated at 450 ºC for 5 and subsequently calcined 750 ºC for 15 h under flowing oxygen. For the preparation of the Li₃PO₄-NCM (P-NCM), 0.5 g polyphosphoric acid (PPA) was mixed with 10 g dimethyl sulfoxide (DMSO) and then 5 g NCM was added 5 g. This slurry was constantly stirred for 15 min and vacuum dried at 80 ºC to completely remove the residual H₂O.
The electrochemical performance of each sample was examined by using CR2032 coin-type cells with metallic lithium as negative electrode in an argon glove box. The positive electrodes were prepared by mixing NCM powder (96 wt%), conductive carbon black (2 wt%) and polyvinylidene fluoride (PVDF) binder (2 wt%) and then added appropriate amount of N-methyl-2-pyrrolidone to form slurry. Prepared slurry was coated on the aluminum foil and dried at 80 ^oC in a vacuum oven for 12 h. The CR2032 coin-type cells were subsequently assembled in an Ar-filled glove box. 1M LiPF₆ in ethylene carbonate (EC), dimethyl carbonate (DMC) and ethyl methyl carbonate (EMC) (1:1:1 in volume) were used to electrolyte.
The X-ray diffraction (Philips, X-pert PRO MPD) was used to investigate the structural properties of the samples with Cu-Kα radiation at a scanning rate of 2^o min^-1 in a range of 2θ from 10^o to 70^o. The field emission scanning electron microscopy (FE-SEM, Hitachi S-4800) was applied to investigate particle shape of P-NCM sample. Transmission electron microscopy (TEM, JEM-2010 JEOL) was employed to confirm the coating layer. The electrochemical performances of samples were evaluated via employing a measurement equipment (TOSCAT-3100, Toyo system).

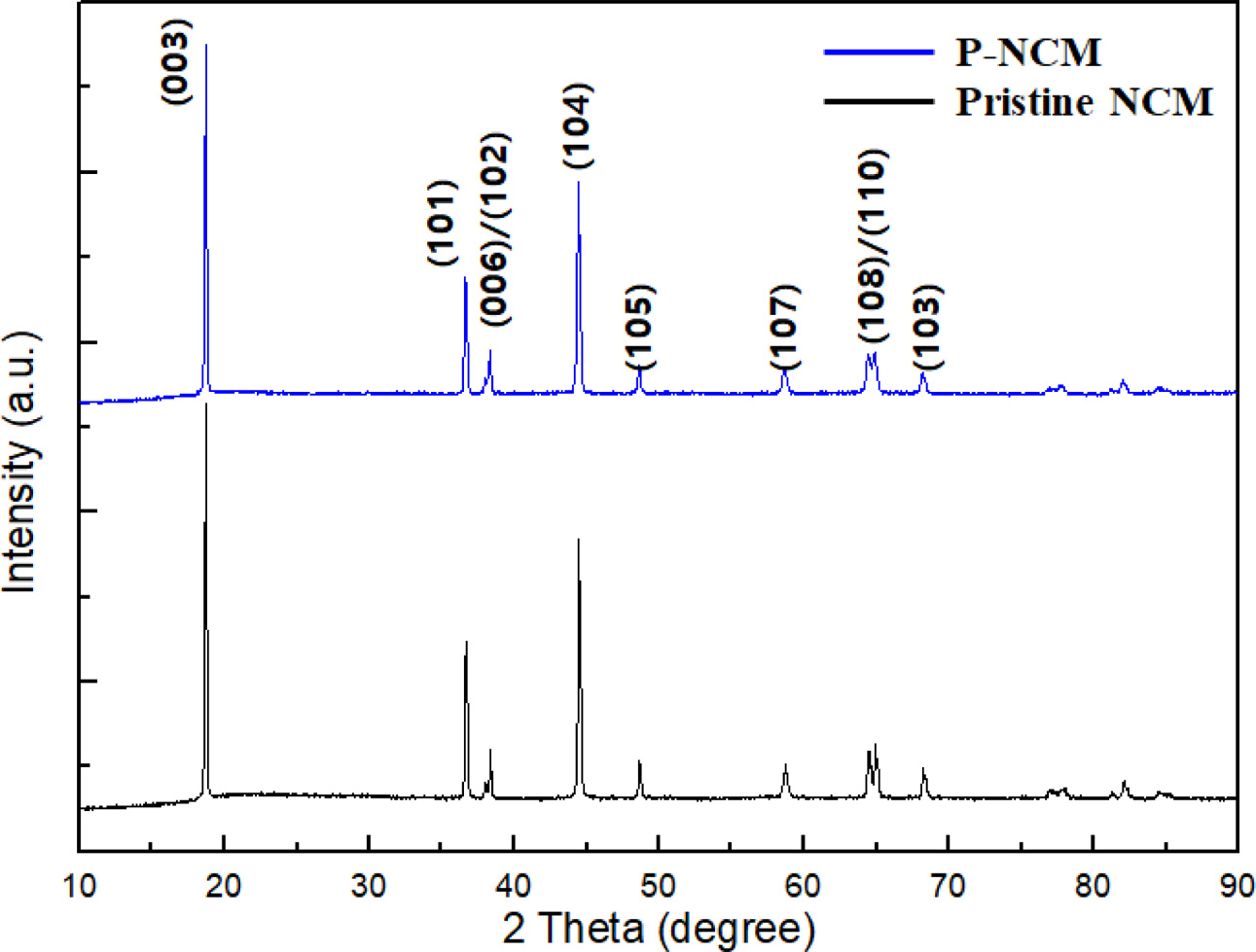

As shown in Fig. 1(a), the X-ray diffraction (XRD) patterns present the structural properties of pristine NCM and P-NCM. The XRD patterns of P-NCM are almost the same compared to pristine NCM, suggesting that the Li₃PO₄ coating layer leads to no change of the original lattice of NCM [15]. All diffraction peaks are indexed as a typical structure of layered hexagonal α-NaFeO₂ structure belong to the space group R-3m without any impurities [16]. The two splitting of (006)/(102) and (108)/(110) peaks around 38^o and 65^o suggests that both samples have a well-crystallized hexagonal layered structure of NCM. Besides, the peak intensity ratio of I₍₀₀₃₎/I₍₁₀₄₎ is related to the degree of cation mixing, resulting from the similar ionic radius of Ni²⁺ (0.69 Å) and Li⁺ (0.76 Å) at the 3a site [17]. When the I₍₀₀₃₎/I₍₁₀₄₎ is above 1.2, it is reported that cathode materials have superior cation disorder [18]. The I₍₀₀₃₎/I₍₁₀₄₎ ratio of P-NCM is 1.53, demonstrating that the Li₃PO₄ coating layer contributes to improve structural stability and electrochemical properties of NCM cathode.
The FE-SEM images of pristine NCM and P-NCM powder can be observed in Fig. 2(a) and (b). It can be seen that both samples have a similar spherical shape with a diameter of 8-15 μm composed of primary particles with an average size of 150-200 nm. Overall, there are no significant changes between the surface shape of pristine NCM (Fig. 2(a)) and P-NCM (Fig. 2(b)). However, the surface morphology of P-NCM exhibits a somewhat rough surface morphology compared to that of pristine NCM, which is clean and smooth. Furthermore, the presence of Li₃PO₄ is proven by TEM, as shown in Fig. 2(c). It can be shown that the Li₃PO₄ coating layer has a thickness of about 60 nm. Therefore, we can confirm that the Li₃PO₄ is successfully coated over the NCM particle.

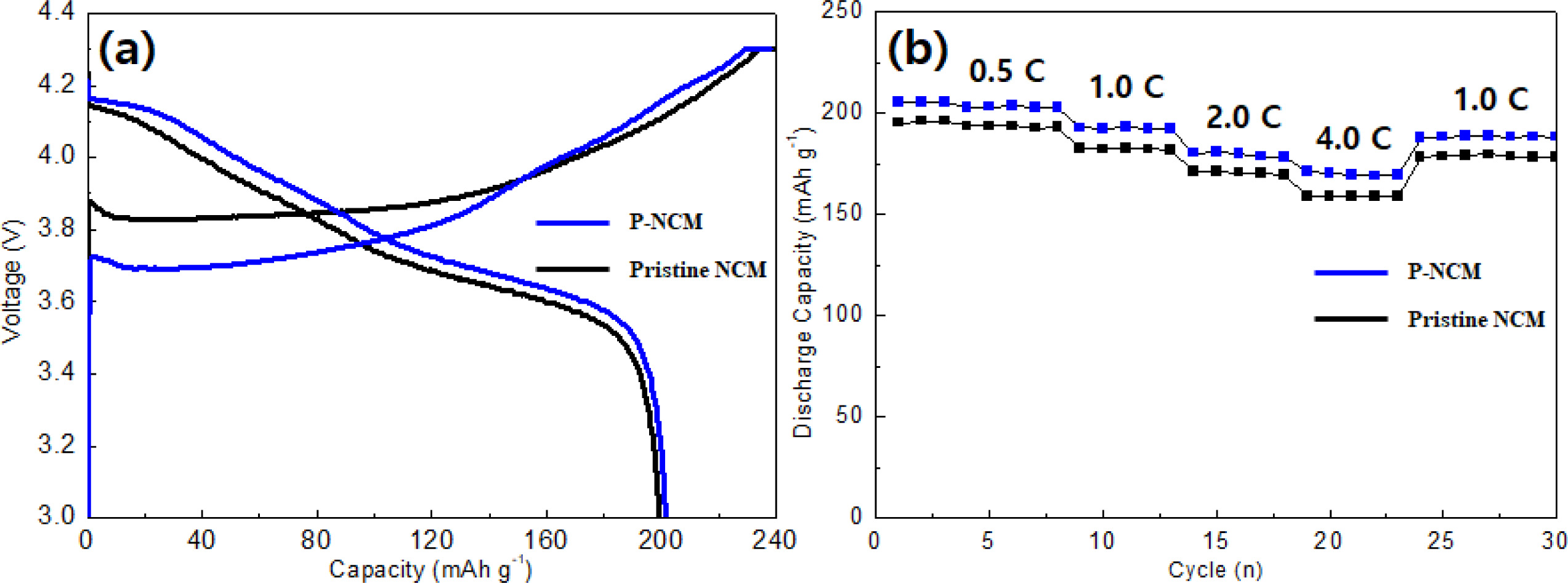

The charge-discharge curves and rate capability of both samples employed to compare the electrochemical performances, as shown in Fig. 3. The initial discharge capacities of pristine NCM and P-NCM at a rate of 0.1 C between 3.0 and 4.3 V (Fig. 3(a)) are 198.6 and 201.6 mAh g^-1, respectively. The rate capability (Fig. 3(b)) was performed at different discharge current rates from 0.5 C to 4.0 C. It can be observed that the capacity retention of both samples is inversely proportional to the increase of the C-rate. The pristine NCM exhibited slightly low discharge capacity as compared to that of P-NCM at low C-rates (0.5 and 1.0 C). With increasing the C-rates (2.0 and 4.0 C), the pristine NCM shows a poor rate capability (171.1 mAh g^-1 and 159.8 mAh g^-1), this phenomenon occurs when direct reaction between the cathode material and electrolyte which causes an increase in charge transfer resistance [19]. However, the P-NCM revealed excellent discharge capacity (176.5 mAhg^-1 and 170.9 mAh g^-1) under the same condition. The significant improvement of electro- chemical performance is probably derived from high conductivity of the Li₃PO₄ coating layer, which is attributed to the reduced content of insulating residual lithium compounds by li₃PO₄ coating. These observations suggest that the Li₃PO₄ coating layer of the secondary particle on the surface facilitates lithium-ion diffusion owing to superior ionic conductivity of Li₃PO₄ layer [11]. Therefore, the removal of residual lithium compounds and formation of ionic conductive Li₃PO₄ coating layer causes smooth and rapid Li transport [20].

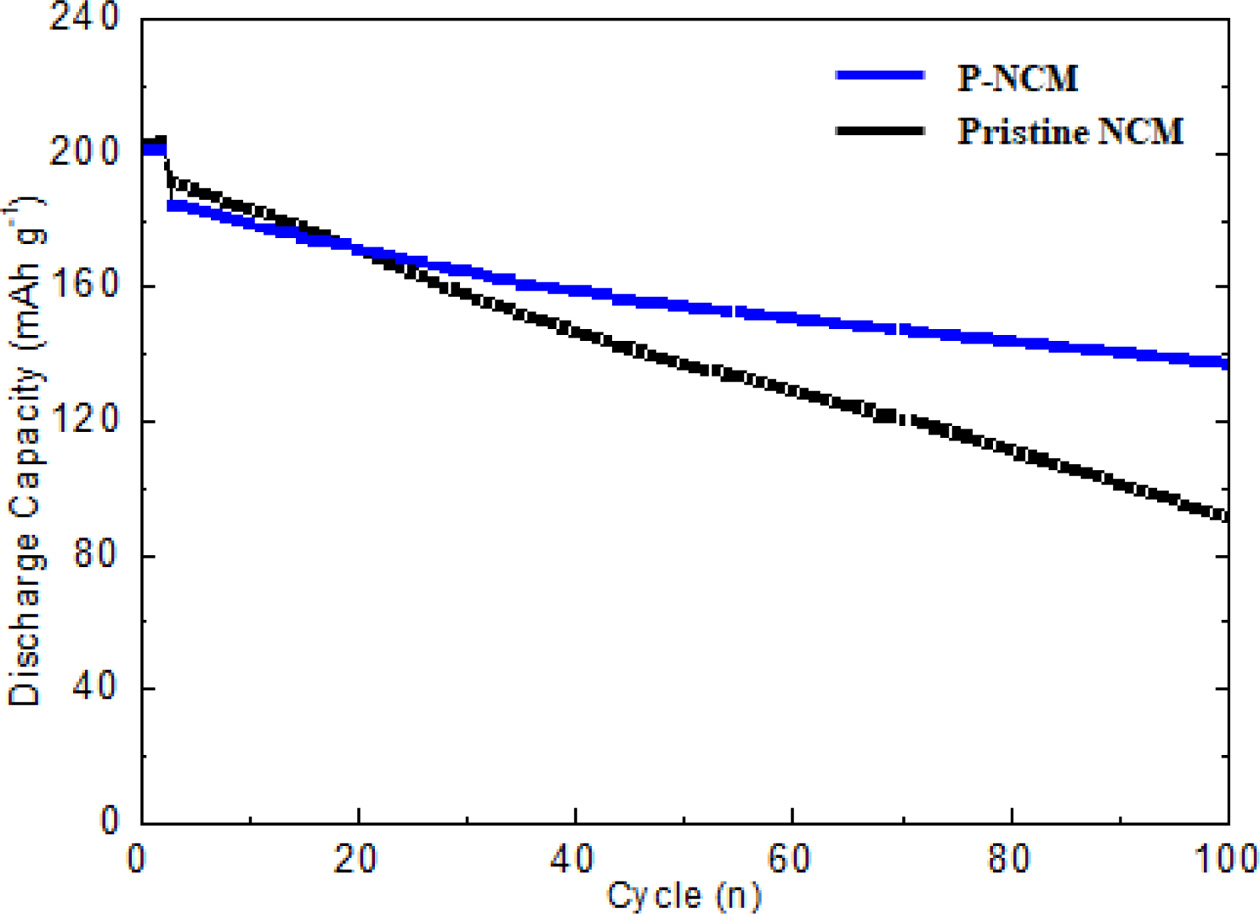

To investigate the electrochemical performances of P-NCM, the long-term cycling performance of pristine NCM and P-NCM at a 0.5 C rate at 25 ^oC in voltage range between 3.0 and 4.3 V. As shown in Fig. 4, the P-NCM has obviously better cycle stability than that of pristine NCM after 80 charge-discharge cycles. The P-NCM delivers the higher discharge capacity of 138.1 mAh g^-1 without severe capacity decay. However, the discharge capacity of pristine NCM drastically fades to 90.2 mAh g^-1 under the same condition. The reason is that Ni-rich NCM materials suffer from inherent problems such as unwanted side reactions with electrolyte and structural instability. However, Li₃PO₄ coating layer over the NCM particle can effectively suppress the direct contact with electrolyte as well as the oxidation of electrolyte. [20]. In particular, Fig. 4 demonstrates that the capacity retention of P-NCM is 80.2% after 80 cycles, whereas that of pristine NCM (60.7%) is slightly lower. Furthermore, it is obviously due to the influence of the Li₃PO₄ coating layer acting as a physical barrier, suppressing the formation of resistive solid electrolyte interphase (SEI) layer and the charge transfer resistance at the electrode-electrode interface between electrode and electrolyte [21]. More importantly, the coating layer of Li₃PO₄ can effectively present good electronic conductivity and stabilize the original layered structure against the dissolution of transition metals and undesirable reactions during cycling [22]. In additional, the Li₃PO₄ coating layer inhibits the formation of intergranular cracking, which is caused by anisotropic lattice expansion/contraction during the charge-discharge cycle [23, 24]. Therefore, surface modification of Li₃PO₄ results in significant improvement in the physical and chemical performances of the cathode materials.

In summary, we successfully fabricated Li₃PO₄ coating layer on the surface of Ni-rich LiNi_0.8Co_0.1Mn_0.1O₂ cathode to improve the electrochemical performances. The Li₃PO₄ coating layer on the cathode surface can improve overall structural stability, superior cyclability and excellent rate capability in contrast to the pristine NCM. These positive effects of Li₃PO₄ coating layer can be resulted from suppressing the interfacial unwanted reaction and maximizing the interfacial kinetic behavior. Therefore, it can be concluded that surface modification of Li₃PO₄ can be considered as an ideal strategy for high-energy and long-life Ni-rich NCM cathode materials.
